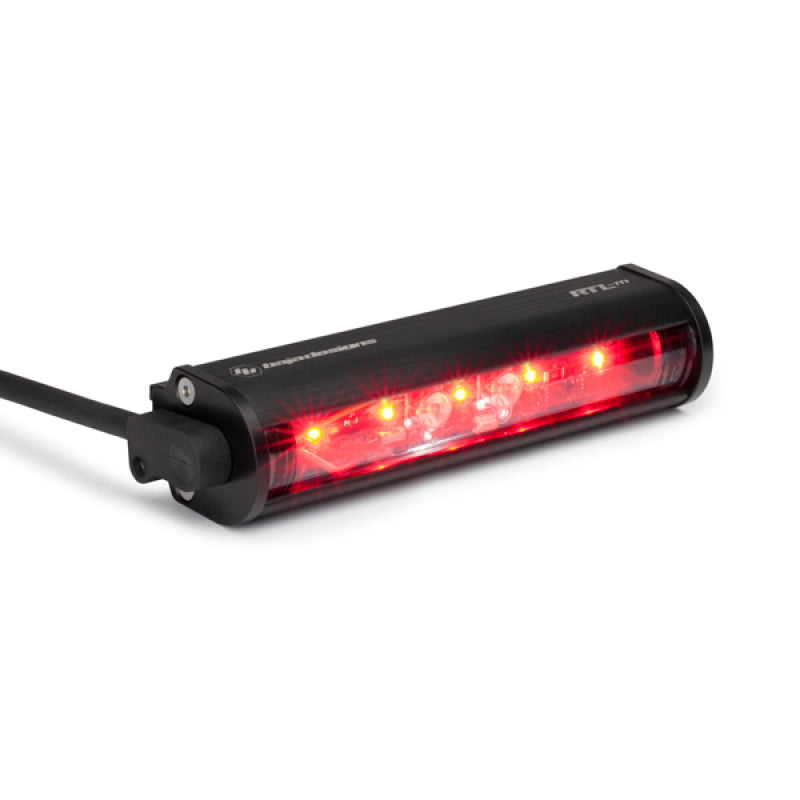

Universal RTL-M 6" Light Bar (BAJ100601)

The Baja Designs RTL-M (Rear Tail Light Mini) packs high-visibility rear lighting into a compact 6-inch bar for tight-install applications. Five red LEDs handle running and brake functions for increased awareness and safety, while the integrated white LEDs add practical cargo and scene lighting for loading gear or lighting up camp.

Features

• Compact 6-inch RTL-M design for space-limited installs
• Five red LEDs for running light and brake light functions
• Central white LEDs with flood reflectors for cargo and scene lighting
• Built-in overvoltage protection
• IP69K rated for waterproof performance and pressure-wash cleaning
• IK10 compliant for mechanical impact resistance
• Exceeds MIL-STD810G (Mil-Spec testing)
• Salt spray certified
• Warranty: Baja Designs Limited Lifetime Warranty

Includes

• (1) RTL-M 6-inch light bar
• Mounting hardware

Specifications

• Taillight wattage: 0.75W
• Brake light wattage: 5.5W
• Cargo light wattage: 8.5W
• Cargo light output: 312 lumens
• Dimensions: 6.69" x 1.56" x 2.5"
• Weight: 1.1 lb
• LED life expectancy: 49,930 hours
• Operating voltage: 9-36V

Compatibility Notes

• Brake light function requires the running light circuit to be powered.
• White cargo/scene light should be wired to a switched power source.
