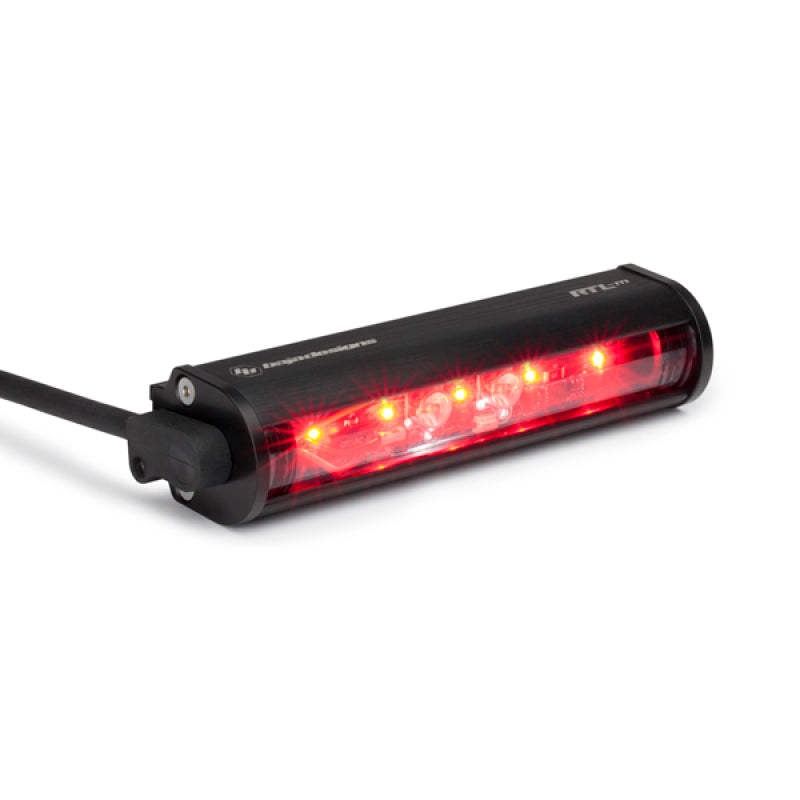

Universal RTL-M No Plate Light 6" Light Bar (BAJ100602)

The Baja Designs RTL-M No Plate Light delivers the same compact, high-visibility rear lighting as the standard RTL-M in a 6-inch footprint, without a license plate light. Designed for space-limited installs, this bar combines rear safety lighting with practical white cargo and scene illumination for off-road use.

Features

• Compact 6-inch RTL-M design for space-limited installs
• Five red LEDs for running light and brake light functions
• Central white LEDs with flood reflectors for cargo and scene lighting
• No license plate light for simplified rear lighting setups
• Built-in overvoltage protection
• IP69K rated for waterproof performance and pressure-wash cleaning
• IK10 compliant for mechanical impact resistance
• Exceeds MIL-STD810G (Mil-Spec testing)
• Salt spray certified
• Warranty: Baja Designs Limited Lifetime Warranty

Includes

• (1) RTL-M No Plate Light 6-inch light bar
• Mounting hardware

Specifications

• Taillight wattage: 0.75W
• Brake light wattage: 5.5W
• Cargo light wattage: 8.5W
• Cargo light output: 312 lumens
• Dimensions: 6.69" x 1.56" x 2.5"
• Weight: 1.1 lb
• LED life expectancy: 49,930 hours
• Operating voltage: 9-36V

Compatibility Notes

• Brake light function requires the running light circuit to be powered.
• White cargo and scene light should be wired to a switched power source.
