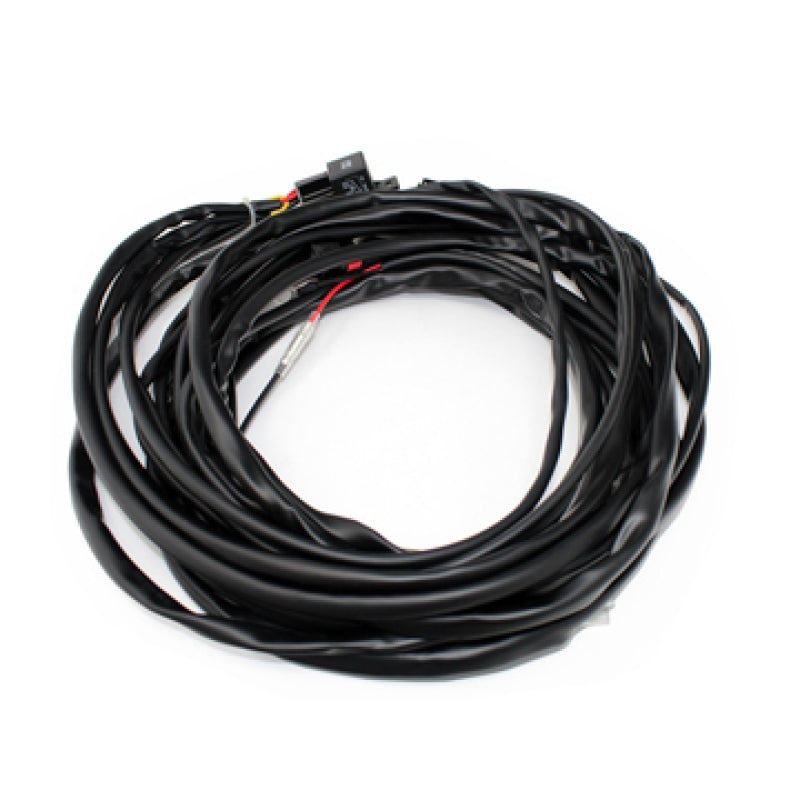

Universal RTL Turn Signal Harness (BAJ640127)

The Automotive RTL Wiring Harness is a specialized electrical solution designed for full-size vehicles, including trucks, SUVs, and Jeeps, that require a reliable power source for rear-facing tail light systems. Engineered with an extended length to reach the rear of the vehicle from the engine bay, this harness provides a clean, professional installation for Rear Tail Light (RTL) series bars. It features high-quality protective sheathing to defend against the elements and road debris, ensuring long-term signal integrity. The integrated relay system efficiently manages multiple lighting functions, allowing for seamless operation of running lights, brake lights, and cargo or reverse light circuits through a single, organized assembly.

Features

• Extended wiring length specifically optimized for full-size automotive wheelbases.
• Integrated heavy-duty relay for stable power distribution across all lighting modes.
• Durable, high-temp protective sheathing for superior abrasion resistance.
• Multi-circuit support for running, brake, and cargo/reverse light functions.
• Includes a dedicated reverse light switch for manual control from the cab.
• Plug-and-play compatibility with standard RTL series light bars.

Specifications

• Application: RTL Series Rear Tail Lights (Non-S models)
• Compatibility: Universal Automotive (Truck, Jeep, SUV)
• Operating Voltage: 9-36V DC
• Switch Type: On/Off Rocker for Reverse/Cargo function
• Relay: Included automotive-grade
• Water Resistance: IP69K (when mated with RTL unit)
• Durability Standards: Exceeds MIL-STD810G requirements
• Impact Resistance: IK10 Compliant

Notes

• This harness is designed for standard RTL models; if installing an RTL-S (with turn signals), the turn-signal specific harness is required for proper integration.
• Mounting hardware for the harness and relay is sold separately.
• Ensure the harness is routed away from high-heat exhaust components and moving suspension parts to prevent damage.
