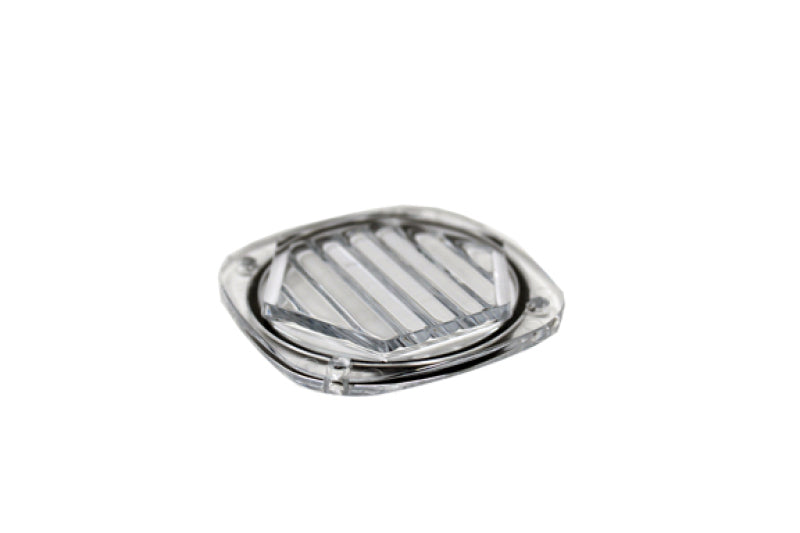

Universal S1 Headlight Lens Kit Clear Wide Cornering (BAJ660117)

The S1 Light Pod Lens Kit in the Wide Cornering pattern is a high-performance optical component designed to maximize near-field visibility and peripheral coverage. This clear lens features a specialized 42-degree flattened horizontal beam that projects a wide, smooth light distribution, making it an essential upgrade for cornering, technical trail navigation, and low-speed maneuvering. Built with uService technology, this kit allows for a seamless transition from other beam patterns without the need to replace the entire light fixture. The hard-coated polycarbonate material ensures the lens can withstand high-velocity impacts while maintaining maximum light transmission and clarity.

Features

• Wide Cornering pattern provides a 42-degree horizontal spread for superior peripheral illumination.
• uService design enables rapid, user-level lens swaps while maintaining factory-grade seals.
• Clear optical finish delivers maximum lumen output and raw light transmission for high-visibility environments.
• Hard-coated polycarbonate construction offers extreme resistance to rock strikes, pitting, and trail debris.
• Integrated O-ring seal ensures the internal electronics remain protected against moisture and dust ingress.

Specifications

• Application: S1 Series LED Lights
• Pattern: Wide Cornering
• Lens Color: Clear
• Material: Hard-coated Polycarbonate
• Durability Standards: IP69K (Submersible and Pressure Washable)
• Environmental Compliance: Exceeds MIL-STD810G requirements
• Impact Protection: IK10 Compliant

Notes

• Each kit includes one (1) Wide Cornering Clear lens and one (1) replacement O-ring seal.
• This pattern is optimized for "Zone 1" (Dust/Fog) and "Zone 2" (Cornering) lighting placements.
• Properly seating the O-ring and torquing the bezel screws is critical to maintaining the MoistureBlock waterproof warranty.
