Universal S8 IR Wire Harness w/ Mode 2 Bar Max (BAJ640122)

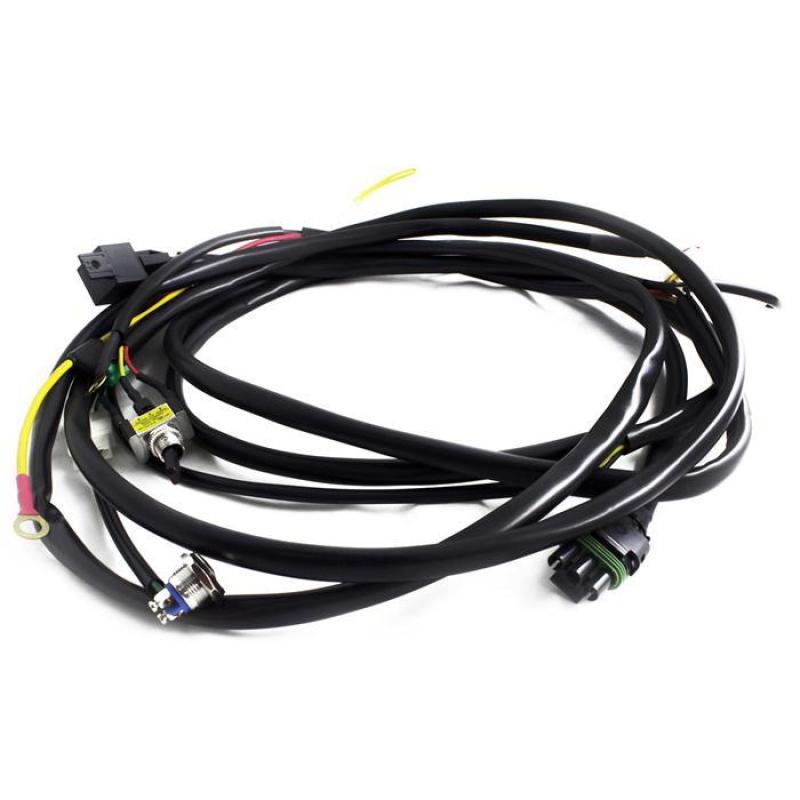

The OnX6/Hybrid/Laser/S8 Wiring Harness with Mode Switch is a race-grade electrical solution specifically designed to manage the sophisticated functions of hybrid, laser, and backlit lighting systems. This heavy-duty harness features a dual-switch configuration that provides independent control over the primary high-power LEDs and the secondary amber backlighting or laser modes. Engineered for extreme reliability, the assembly utilizes premium-grade wire gauges to ensure consistent voltage delivery to large light bars. With a generous 100-inch span between the battery terminals and the 3-pin weather-sealed connector, it offers extensive routing flexibility for roof-mounted or bumper-mounted installations on trucks, Jeeps, and performance off-road vehicles.

Features

• Dual-switch interface featuring an On/Off toggle for primary light function and a secondary switch for backlight or laser mode.
• Heavy-duty wire gauge construction capable of supporting high-output light bars of any length.
• Weather-sealed 3-pin connector system for secure, moisture-resistant electrical mating.
• Integrated automotive-grade relay and inline fuse for comprehensive circuit protection.
• High-temperature protective sheathing to prevent abrasion and heat-related wire degradation.
• Complete installation kit includes battery ring terminals and pre-terminated connectors for a professional finish.

Specifications

• Application: OnX6, Hybrid, Laser, and S8 Series Light Bars
• Maximum Wattage: 325 Watts
• Configuration: 1-Bar Control
• Voltage: 12V DC compatible
• Harness Length: 100 Inches (Battery to Weatherpack)
• Connector Type: 3-Pin Weatherpack / Splice Connectors
• Switch Type: Dual On/Off Toggle and Mode Switch
• Durability Standards: Exceeds MIL-STD810G requirements
• Water Resistance: IP69K (connector and relay housing)
• Impact Rating: IK10 Compliant

Notes

• Specifically engineered for lights featuring secondary circuits such as the S8 amber backlight or Hybrid Laser modules.
• Ensure the secondary switch leads are correctly routed through the firewall to prevent terminal strain.
• This harness is universal for 12V systems and is not vehicle-specific; verify clear routing away from moving suspension or high-heat engine components.
