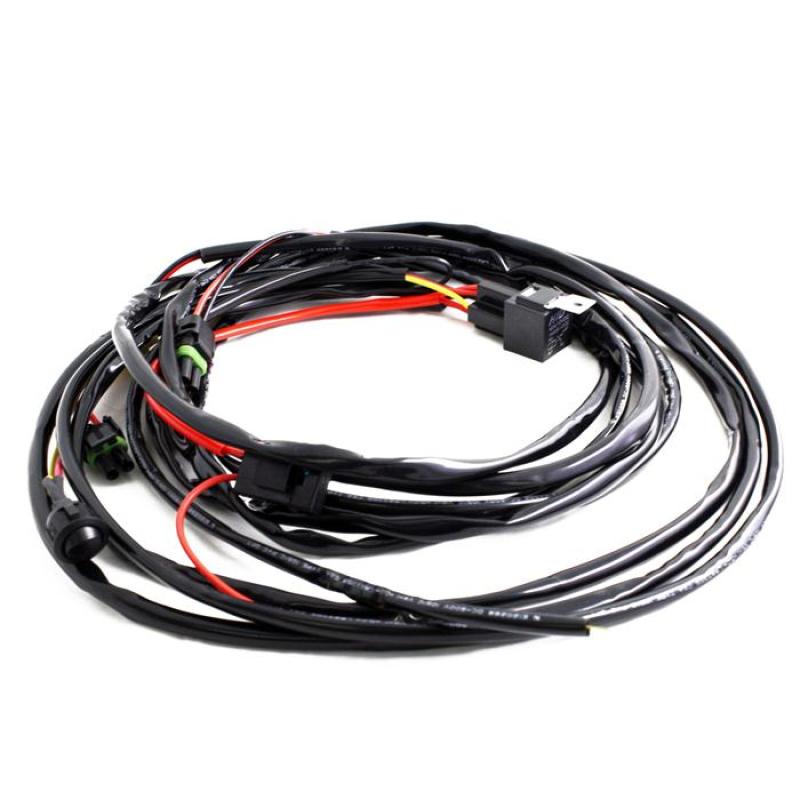

Universal S8 Series Backlight Add-On Wiring Harness (BAJ640177)

The S8 Series Backlit Add-On Harness is a precision-engineered adapter designed to activate the signature amber backlighting feature on S8 series light bars when utilizing a standard On/Off wiring harness. This component bridges the functional gap for users who already have a primary power harness installed but wish to utilize the secondary low-draw daytime running light (DRL) circuit. By integrating this add-on, the user gains independent control over the aesthetic amber glow without the need to replace existing high-power infrastructure. Built to the same rigorous standards as all Baja Designs electrical components, it ensures a secure and weather-tight connection that maintains the integrity of the vehicle's electrical system.

Features

• Enables amber backlighting/DRL functionality on all S8 series LED light bars.
• Seamlessly integrates with existing standard On/Off wiring harnesses.
• Weather-sealed connectors provide a moisture-resistant and vibration-proof interface.
• High-temperature protective sheathing for superior resistance against engine heat and abrasion.
• Streamlined design allows for a professional installation without the need for complex wire splicing.

Specifications

• Application: S8 Series LED Light Bars
• Voltage Compatibility: 12V DC
• Connector Type: Specialized 3-pin to 2-pin Adapter Interface
• Material: High-temp TPE and high-quality protective sheathing
• Water Resistance: IP69K Rated (Submersible and Pressure Washable)
• Durability Standards: Exceeds MIL-STD810G requirements
• Impact Resistance: IK10 Compliant

Notes

• This harness is an add-on component and does not replace the primary power harness required to operate the main LEDs.
• To prevent accidental battery drain, it is recommended to connect the backlight lead to a switched ignition source or a dedicated dash switch.
• Only one add-on harness is required per light bar installation.
