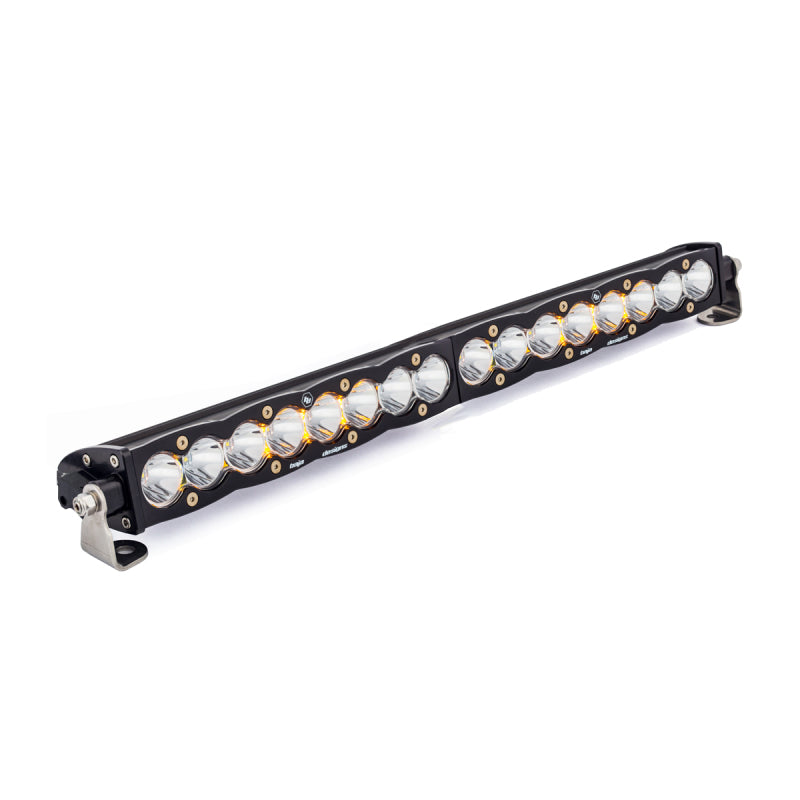

Universal S8 Series Single Straight Spot Pattern 20" LED Light Bar (BAJ702001)

The S8 Straight 20-inch LED Light Bar in a Clear Spot configuration is the definitive choice for long-range, high-speed illumination. This dual-section light bar utilizes 16 high-intensity LEDs focused through precision spot optics to deliver 12,700 lumens of raw power. Designed to project a narrow, concentrated beam far down the trail, it provides the reaction time necessary for high-speed desert racing or open trail navigation. The unit features an aircraft-grade aluminum housing with a mil-spec hard anodized finish and an IK10-compliant, hard-coated polycarbonate lens for maximum impact resistance. With an IP69K rating, the assembly is completely waterproof and pressure-washable, while the integrated CopperDrive system manages the 120W power draw to ensure consistent performance.

Features

• High-Speed Spot optics provide a tight, long-range beam focus for maximum distance penetration.
• Integrated amber backlight offers a secondary low-power accent mode for increased vehicle presence.
• uService technology allows for the lens and optics to be serviced or replaced in the field.
• MoistureBlock system provides a permanent waterproof seal, even if the power cord is cut.
• 5000K daylight color temperature enhances terrain definition and significantly reduces eye fatigue.
• Exceeds MIL-STD810G standards for durability against vibration, shock, and extreme environmental conditions.

Notes

• Includes a 20-inch S8 Straight LED light bar and heavy-duty mounting hardware.
• Optimized for Lighting Zones 4 and 5, providing long-distance visibility beyond standard driving lights.
• The 20-inch configuration draws 8.0A and requires a high-current wiring harness with a secondary switch for the backlight.
• Compatible with a variety of vehicle-specific mounting brackets for seamless integration into grilles and bumpers.
