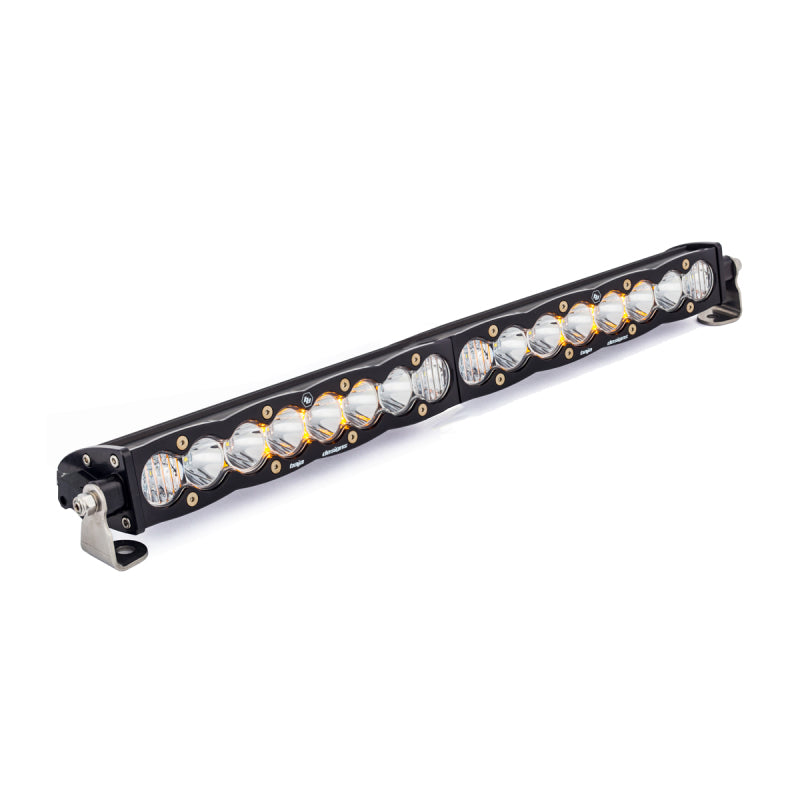

Universal S8 Series Straight Driving Combo Pattern 20" LED Light Bar (BAJ702003)

The S8 Straight 20-inch LED Light Bar in the Clear Driving/Combo configuration offers a balanced, high-output lighting solution for diverse terrain and varying speeds. This 120W unit utilizes a sophisticated hybrid optic system that integrates 42-degree horizontal driving reflectors for expansive peripheral coverage and 9-degree spot reflectors for a powerful distance punch, delivering a total of 12,700 lumens. The clear hard-coated polycarbonate lens ensures maximum transmission of the 5000K daylight color temperature, which mimics natural sunlight to improve depth perception and reduce eye strain. Built to withstand extreme conditions, the bar features an IP69K waterproof rating and meets MIL-STD810G durability standards, while the CopperDrive thermal management system ensures the high-intensity LEDs maintain peak output during sustained operation.

Features

• Driving/Combo beam pattern provides a seamless transition between wide-angle cornering and focused distance illumination.
• Integrated amber backlight delivers a secondary low-power accent mode for enhanced vehicle aesthetics and visibility.
• uService technology allows for rapid, user-level lens servicing and pattern customization in the field.
• CopperDrive thermal management manages heat dissipation to ensure stable and consistent performance at 8.0A.
• Hard-coated polycarbonate lens provides IK10-rated impact resistance against high-velocity debris and trail roost.
• MoistureBlock technology utilizes a specialized cord grip to prevent water from wicking into the housing through the power lead.

Notes

• Includes a 20-inch S8 Straight LED light bar and heavy-duty mounting hardware.
• This configuration is optimized for Lighting Zones 1, 2, and 3, providing total trail coverage from the foreground to the mid-field.
• A dual-switch wiring harness is required to independently operate the main light bar and the secondary amber backlight.
