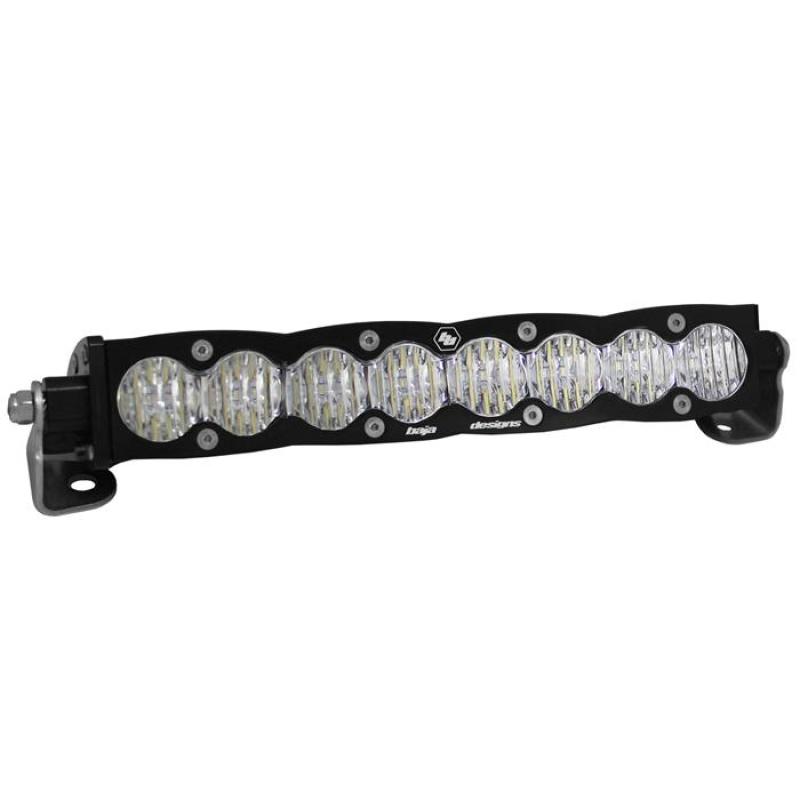

Universal S8 Series Wide Driving Pattern 10" LED Light Bar (BAJ701004)

The S8 Straight 10-inch LED Light Bar in the Clear Wide Cornering configuration is engineered for superior peripheral illumination and near-field area saturation. This low-profile light bar utilizes specialized 42-degree flattened horizontal optics to project a wide, consistent beam that fills the immediate foreground and trail edges while eliminating wasted vertical light spill. The optically clear hard-coated polycarbonate lens ensures maximum transmission of the natural 5000K daylight color temperature, providing high-contrast visibility that reduces eye fatigue during technical maneuvers or low-speed cornering. Built with uService technology, the unit allows for field-serviceable lens and O-ring maintenance, while the CopperDrive thermal management system and scalloped bezel design work together to maintain peak LED output during extended operation.

Features

• Wide Cornering pattern provides a 42-degree horizontal beam spread for maximum peripheral and trail-edge visibility.
• uService technology enables user-level lens and O-ring replacement without voiding the factory warranty.
• Integrated amber backlight serves as a low-power accent light for enhanced vehicle aesthetics and safety.
• CopperDrive thermal management ensures the high-output LEDs maintain stable performance and longevity.
• Hard-coated polycarbonate lens offers superior impact resistance against trail roost and abrasive debris.
• MoistureBlock cord grip prevents water and dust from wicking into the housing through the power lead.

Specifications

• Performance: 6,324 Lumens
• Wattage: 58W
• Amperage: 4.2A

Notes

• Includes a 10-inch S8 Straight LED light bar and mounting hardware.
• The Wide Cornering pattern is optimized for Lighting Zones 1 and 2 to illuminate the periphery.
• Requires a compatible S8 wiring harness to support the dual-circuit functionality of the primary bar and backlight.
