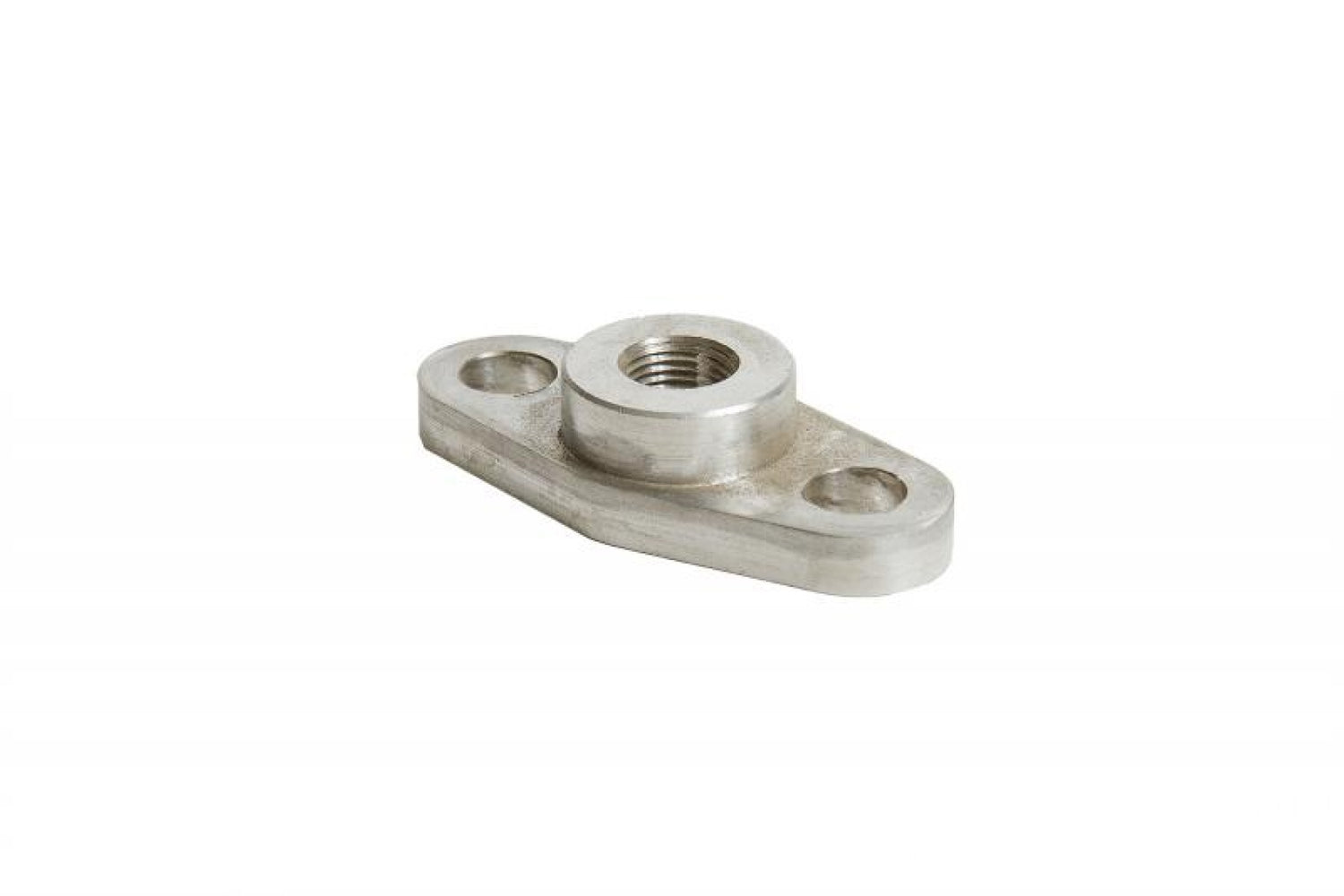

Universal T4/T3 Oil Feed Flange (FR-UNI-ODF)

The Full-Race Garrett Oil Feed Flange is a precision CNC-machined billet component designed for use with various Garrett turbochargers. It is essential for turbos like the GT40R that lack a tapped oil feed inlet, requiring a separate flange to properly install the oil feed line. This flange ensures a reliable connection for delivering critical oil supply to the turbocharger's bearing system, and can also be used with other standard Garrett turbochargers.

Features

• Precision CNC manufactured for exact fitment.
• Constructed from 6061-T6 billet aluminum for ultimate strength with minimal mass.
• Machined with a 1/8-inch NPT thread for secure oil line connection.

Notes

• Teflon tape is recommended at the NPT thread junction to ensure a leak-free seal.
• This is an oil feed flange, designed for the pressurized oil supply line.

Compatibility Notes

• Fits Garrett turbochargers that require a feed flange, such as those without a factory tapped oil inlet (e.g., GT40R).
• Can be used with other standard Garrett turbochargers (T3/T4 type).

Specs

• Material: 6061-T6 Billet Aluminum
• Port Thread Size: 1/8 inch NPT
• Application: Oil Feed Line
