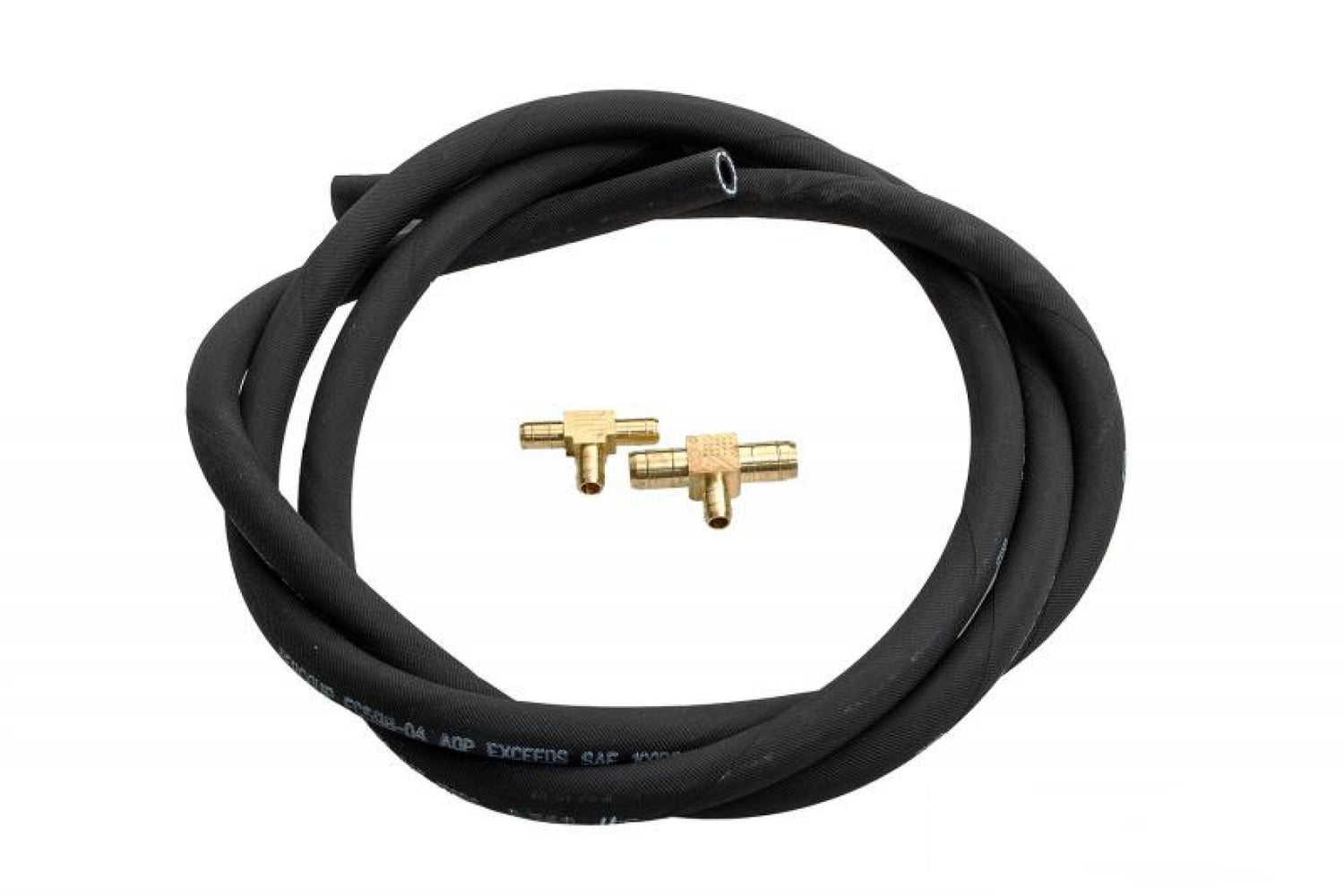

Universal Vacuum Line Kit (FR-UNI-VACUUM-KIT)

The Full-Race Spec Vacuum Line Kit provides a reliable and high-performance solution for routing vacuum and boost lines in turbocharged vehicles. The kit is designed to tap into the largest available vacuum source without requiring drilling and tapping the intake manifold, typically by splicing into the brake booster line before the check valve. The included T-fittings then distribute the signal to essential components like the blow-off valve and wastegate port.

Features

• Included vacuum hose features high pressure and temperature ratings.
• Vacuum hose has an internal braid for enhanced durability and a tough outer cover for abrasion resistance.
• Included nylon barb fittings are single-barbed to minimize leaks through a smoother sealing surface.

Notes

• The large T fitting is intended to splice into the brake booster line before the check valve for the largest vacuum source.
• The smaller T fitting feeds lines to the blow-off valve and wastegate port.
• Fittings have a maximum pressure rating of 150 psi at 72°F.
• Fittings have a temperature range of -60°F to +175°F.

Compatibility Notes

• Universal fit, designed for most turbocharged vehicle applications.

Specs

• Hose Construction: Internal Braid, Tough Outer Cover
• Fitting Material: Nylon
• Fittings: Large T, Small T, and assorted connectors (Barb fittings are semiclear/translucent).
