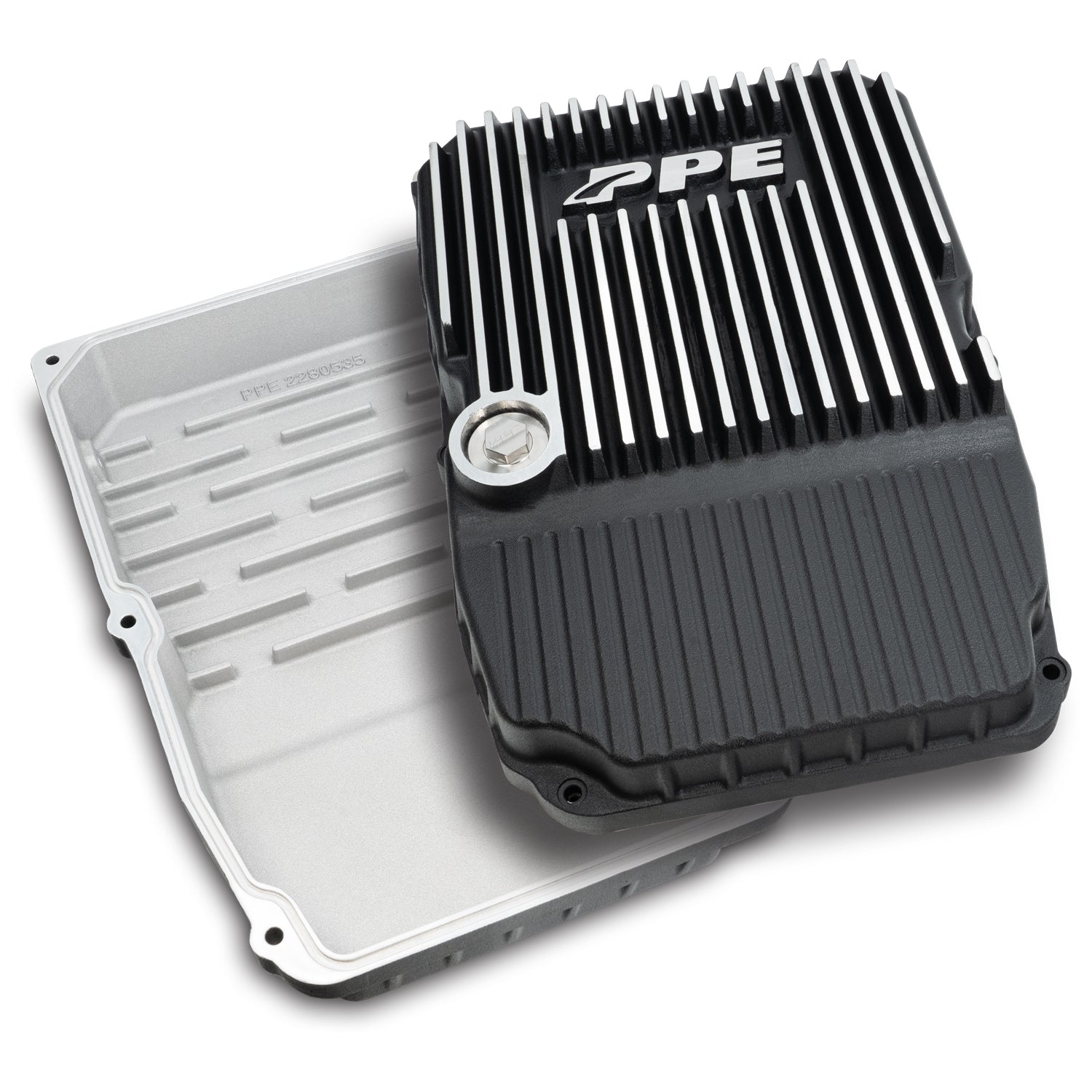

2005-2010 Ram HD/Grand Cherokee WA580/W5A580/NAG1 Heavy-Duty Cast Aluminum Transmission Pan Brushed (228053510)

Description

Whether your stock stamped steel transmission pan has been damaged, rusted, or you just want a bolt-on upgrade with better performance, the PPE Cast Aluminum Transmission Pan is your best choice for increased strength and lower fluid temperatures.

Cast aluminum is superior to the stock stamped steel for cooling transmission fluid. PPE has engineered Deep exterior fins that increase surface area and take advantage of underside air flow to dissipate heat far better than stock. Cast gussets provide strength and rigidity to the housing. Even the drain plug has been upgraded.

The exclusive high-power Neodymium magnet-equipped, billet, hardened stainless steel drain plug attracts and holds ferrous metals from the fluid before they do damage. The factory plug has no magnet and provides no protection.

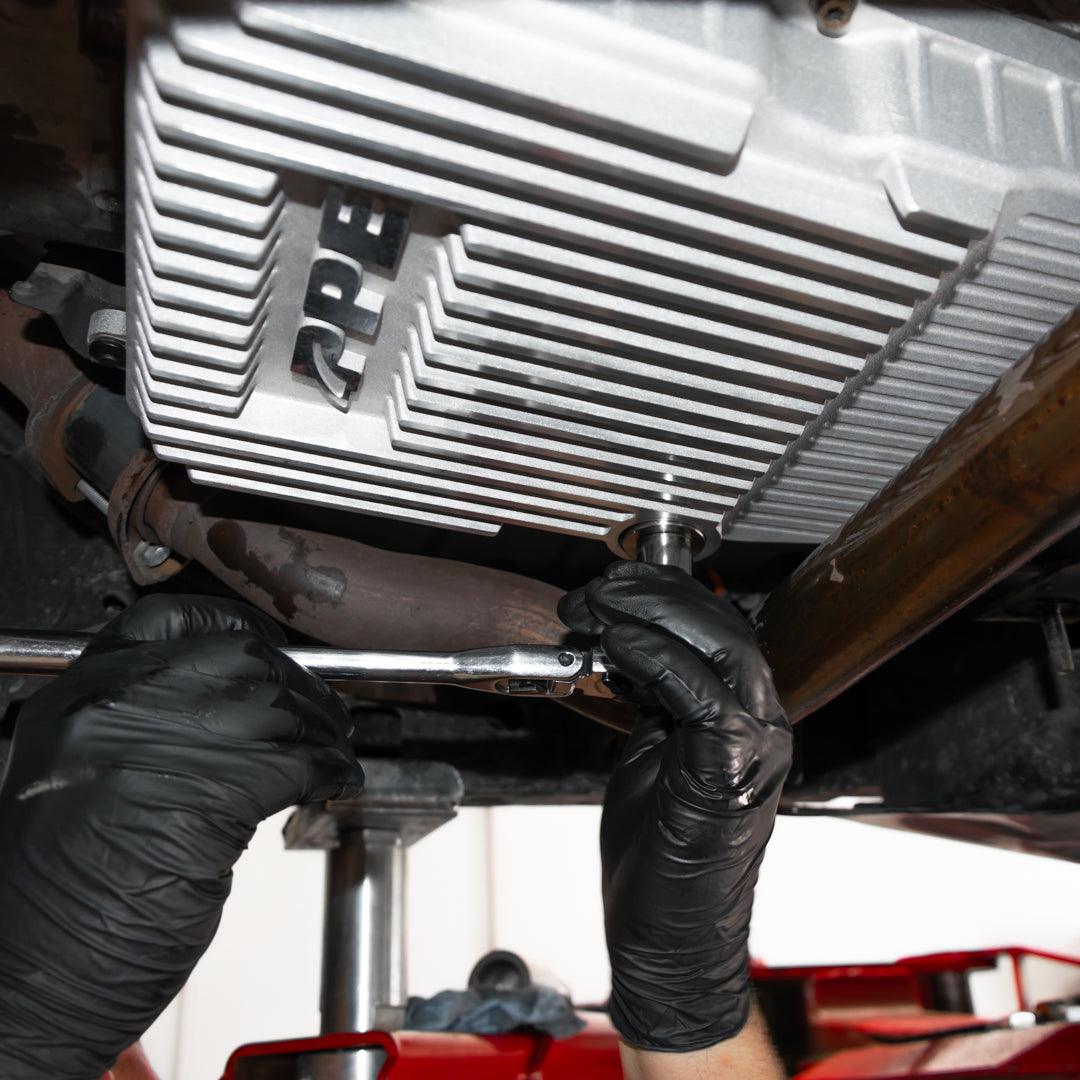

Increase your transmission's performance and durability with this easy install.

Features

• Premium A356.0-T6 heat-treated cast aluminum alloy - a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 3/4 quart for higher thermal capacity
• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance

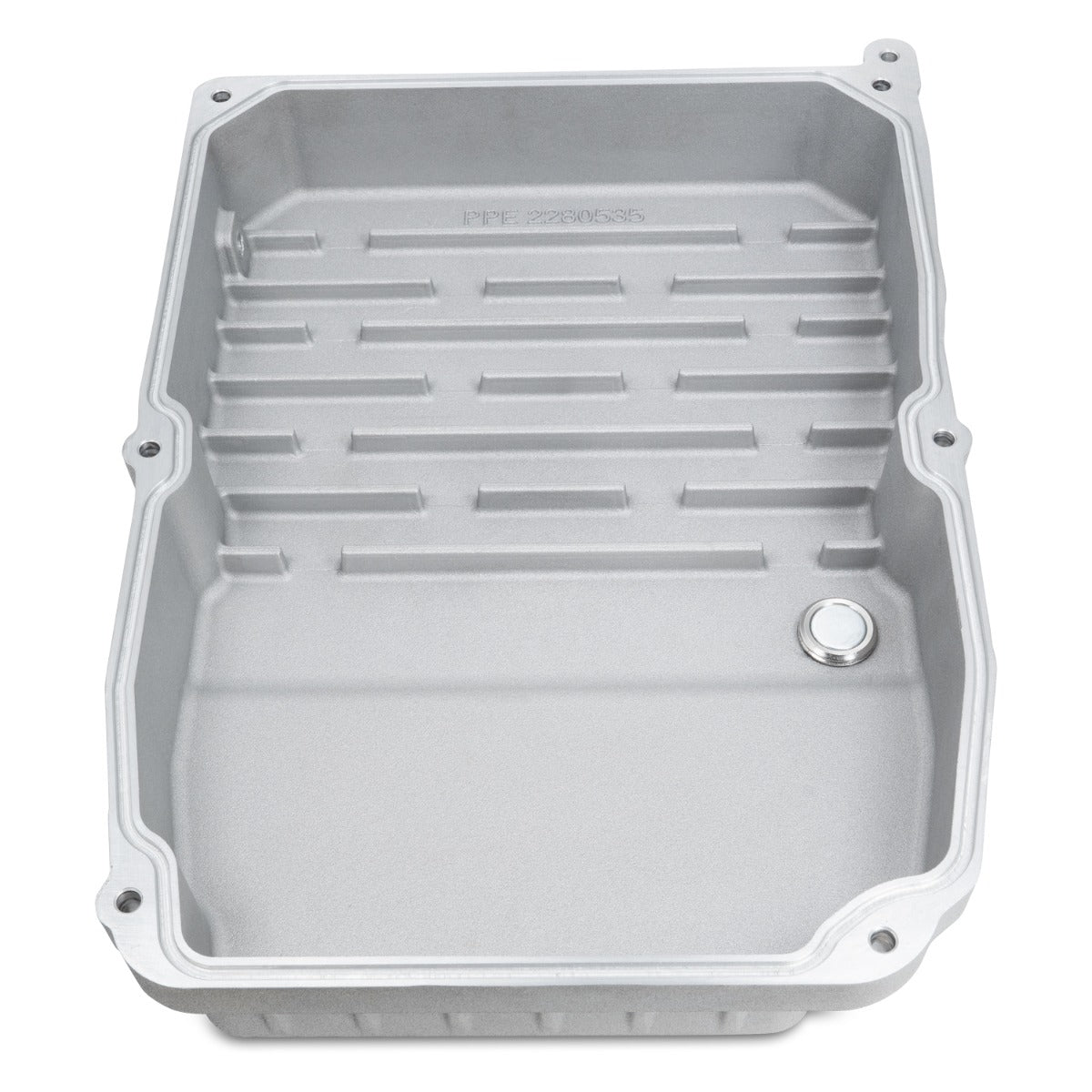

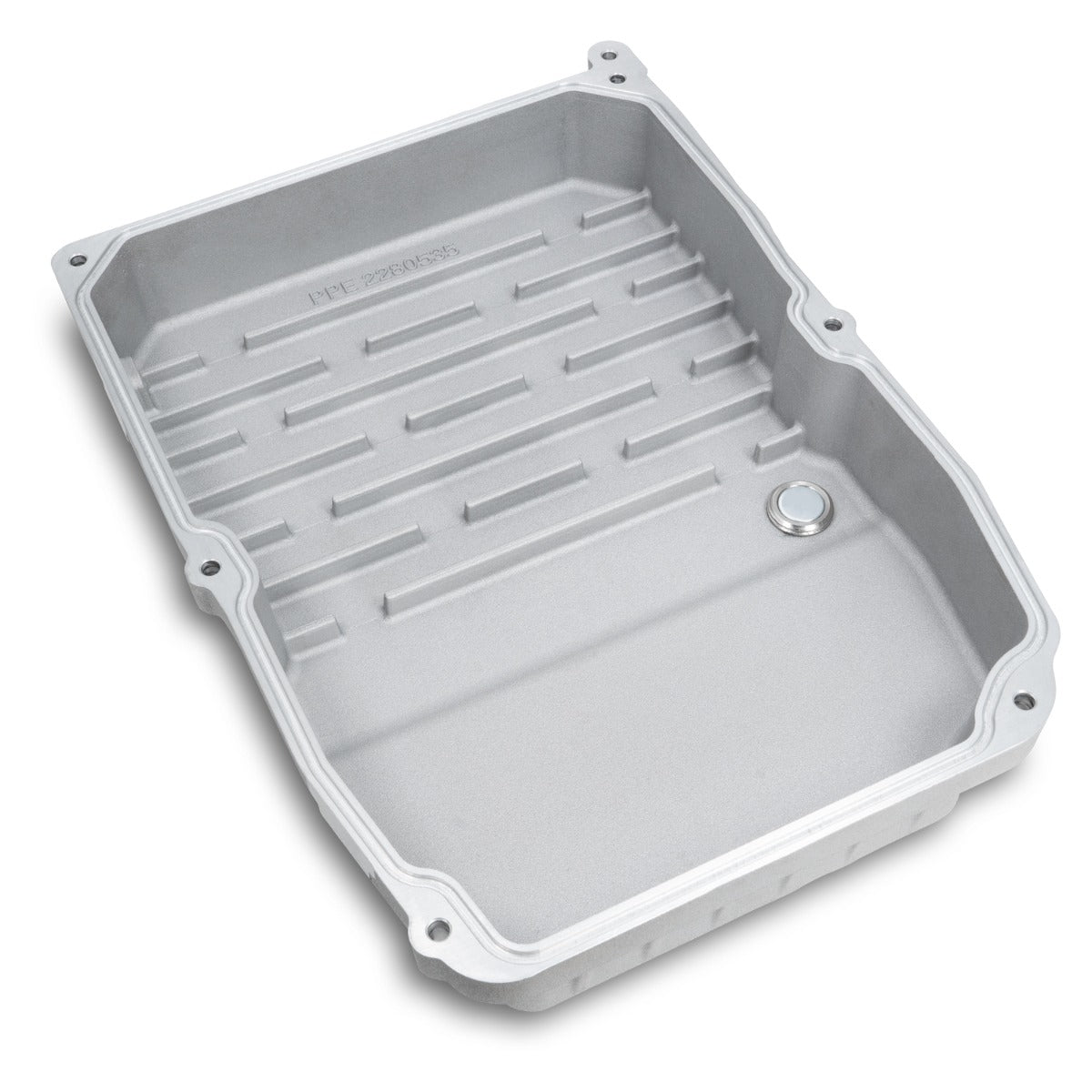

• Half-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
• Cast-in gussets for additional transmission housing flange support and increased rigidity
• 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug
• Compatible with OEM filter

Notes

• Requires the use of an exhaust spacer kit or aftermarket Y-pipe on 2012-2018 Jeep Wrangler JK models to clear the bottom of the transmission pan.
