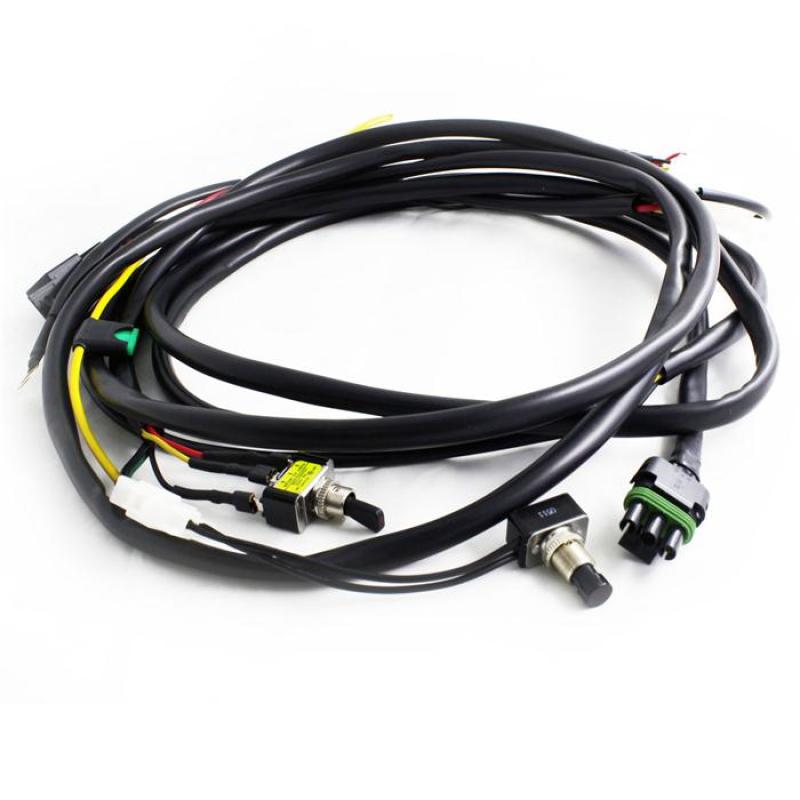

Universal XL Pro Sport Wire Harness w/ Mode 2 Lights Max (BAJ640119)

The OnX6/XL Hi-Power Wiring Harness is a professional-grade electrical solution engineered specifically for high-output lighting systems. Designed to support the extreme power requirements of the OnX6 and XL series LED lights, this harness features a dedicated mode switch that enables users to toggle between high-power and dimming functions. Built for race-ready performance, the assembly utilizes heavy-duty wire gauges and high-temperature sheathing to ensure reliable power delivery and protection against environmental stress. The 100-inch length provides ample reach for mounting lights on bumpers, roof racks, or light bars, making it a versatile choice for trucks, Jeeps, and UTVs requiring maximum illumination capacity.

Features

• Dual-switch interface includes an On/Off toggle and a secondary button for mode/dimming control.
• High-capacity 355-watt power handling for large LED bars and high-performance pods.
• Heavy-duty wire gauge construction designed to minimize voltage drop.
• Complete assembly with integrated relay, fuse holder, and battery ring terminals.
• Three-pin Weatherpack connectors for secure, moisture-resistant connections.
• Universal design suitable for a wide range of 12V vehicle platforms.

Specifications

• Maximum Wattage: 355 Watts
• Maximum Amperage: 28.2 Amps
• Voltage Compatibility: 12V DC
• Harness Length: 100 Inches
• Connector Type: Three-Pin Weatherpack
• Switch Type: On/Off Toggle and Mode/Dim Push Button
• Durability Standards: Designed to meet MIL-STD810G requirements
• Environmental Protection: IP69K rated connectors
• Impact Resistance: IK10 Compliant

Notes

• This harness is required for utilizing the dimming/high-low feature on compatible OnX6+ and XL series lights.
• The 50-inch OnX6+ light bar is pre-dimmed and does not utilize the Hi-Lo function of this harness in the same manner as smaller units.
• Verify total system amperage does not exceed the 28.2A rating when connecting multiple high-power lights.
