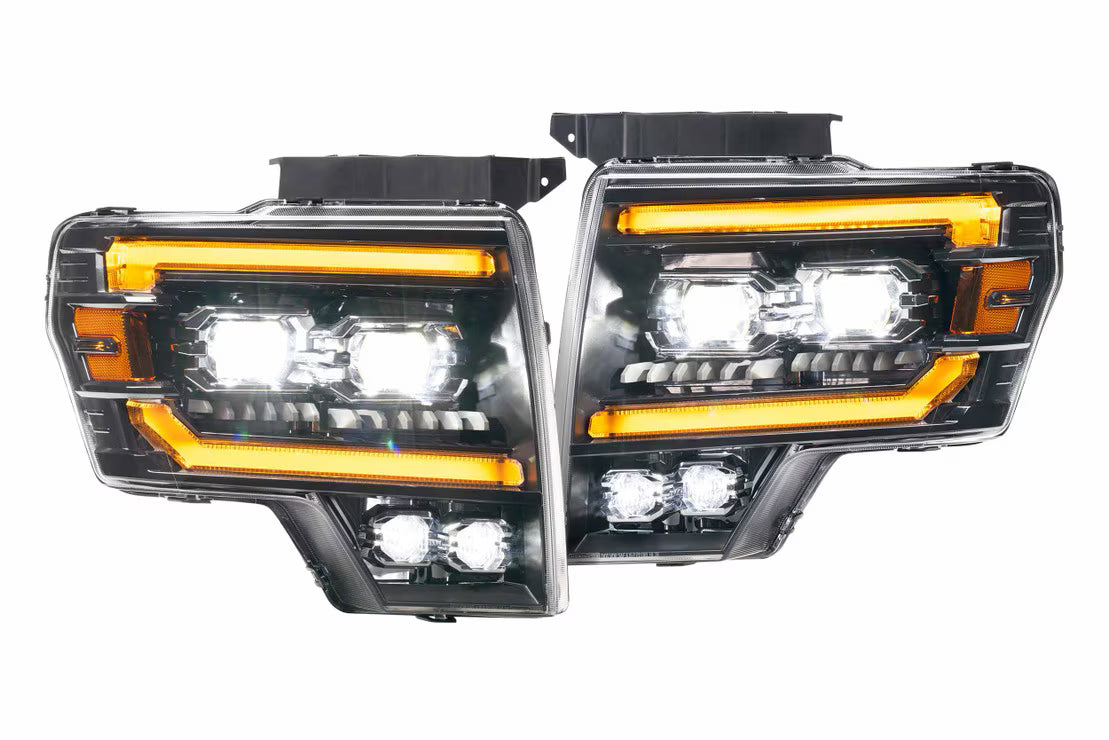

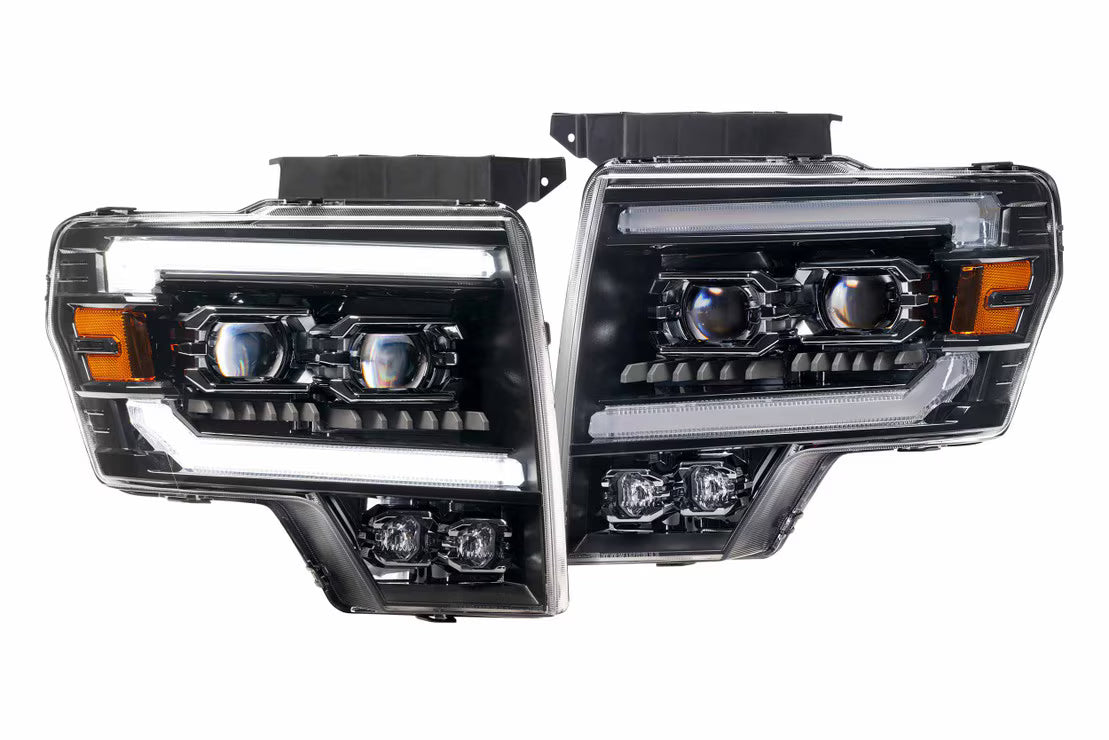

2009-2014 F-150 XB Evo Headlights (LF2-506)

The all-new Morimoto XB Evo headlights are a showcase of technology, compliance, quality, and styling, designed for serious enthusiasts. These headlights are packed with features including a patent-pending heating system that warms the surface temperature of the lens to minimize frost buildup when driving through wet and snowy conditions in the wintertime. The signal swap system allows users to personalize the operation of daytime running lights and turn signals via a simple plug-and-play key. The DRL can be configured to run full-time in either white or amber with no compromise in intensity. The all-new generation of Morimoto Bi-LED projectors utilizes dual Bi-LED projectors powered by Nichia's latest automotive LEDs to deliver unmatched light output that exceeds the rigorous standards of the IIHS. An optional Supercharged LED driver is available to boost intensity by 30-50% for maximum off-road output. The headlights feature a start-up sequence upon ignition and are backed with an industry-leading five-year warranty.

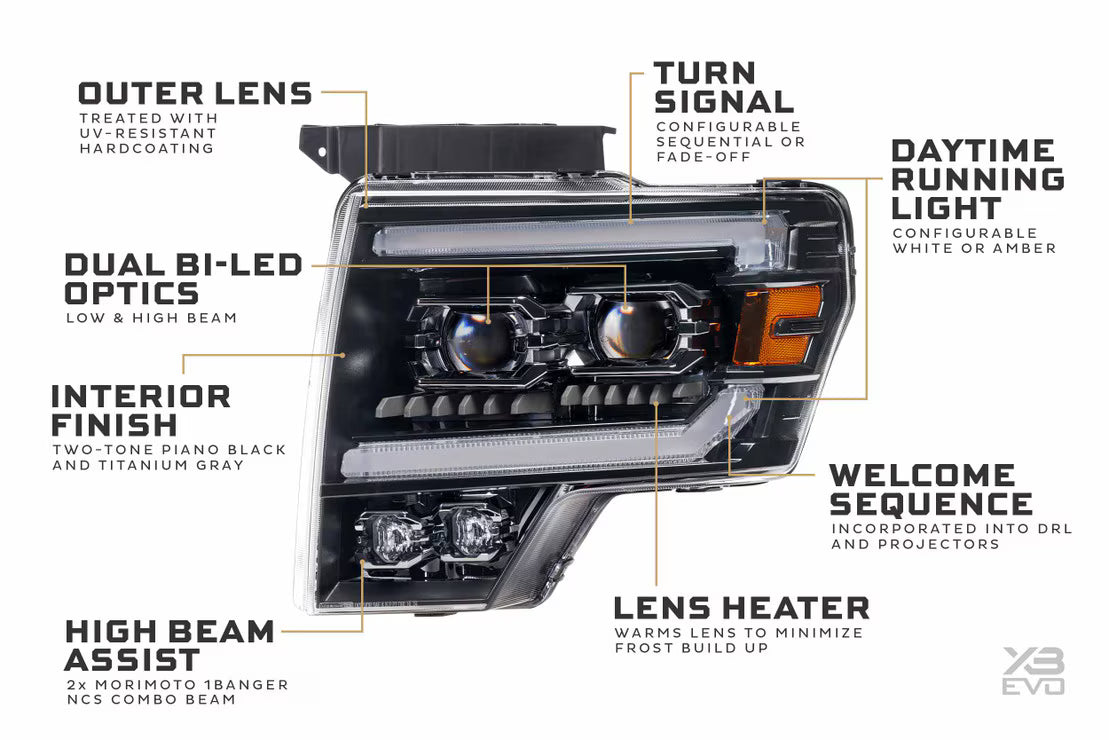

Features

• XB Evo represents the latest in lighting technology, compliance, quality, and styling
• All-new optics with dual Bi-LED projectors powered by Nichia LEDs for maximum performance
• Meets DOT compliance standards for public roads in standard form

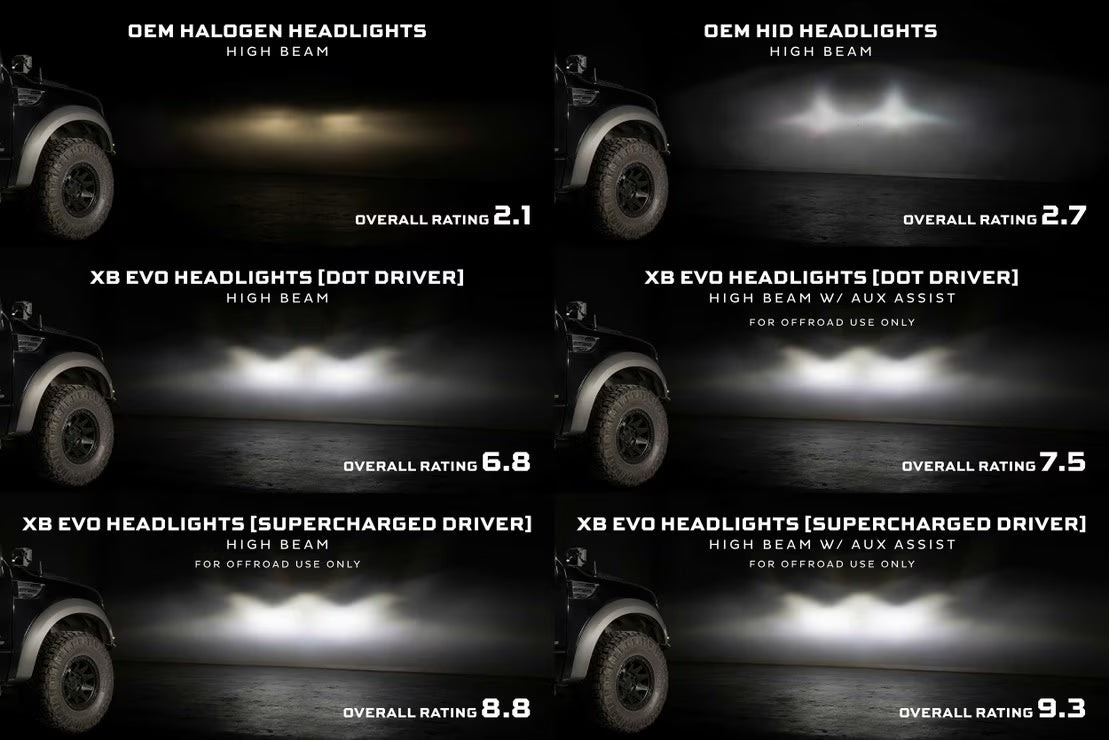

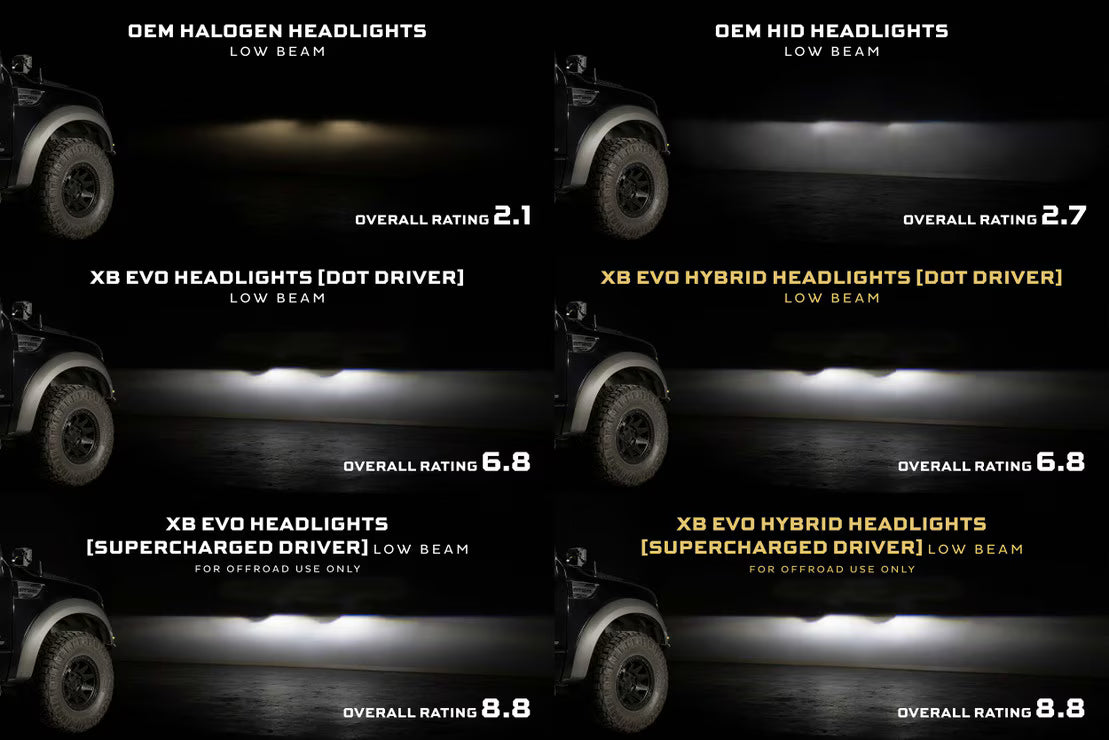

• Optional Supercharged LED driver boosts intensity by 30-50% for off-road use
• Frost-Free System warms the lens surface to prevent frost buildup in cold conditions

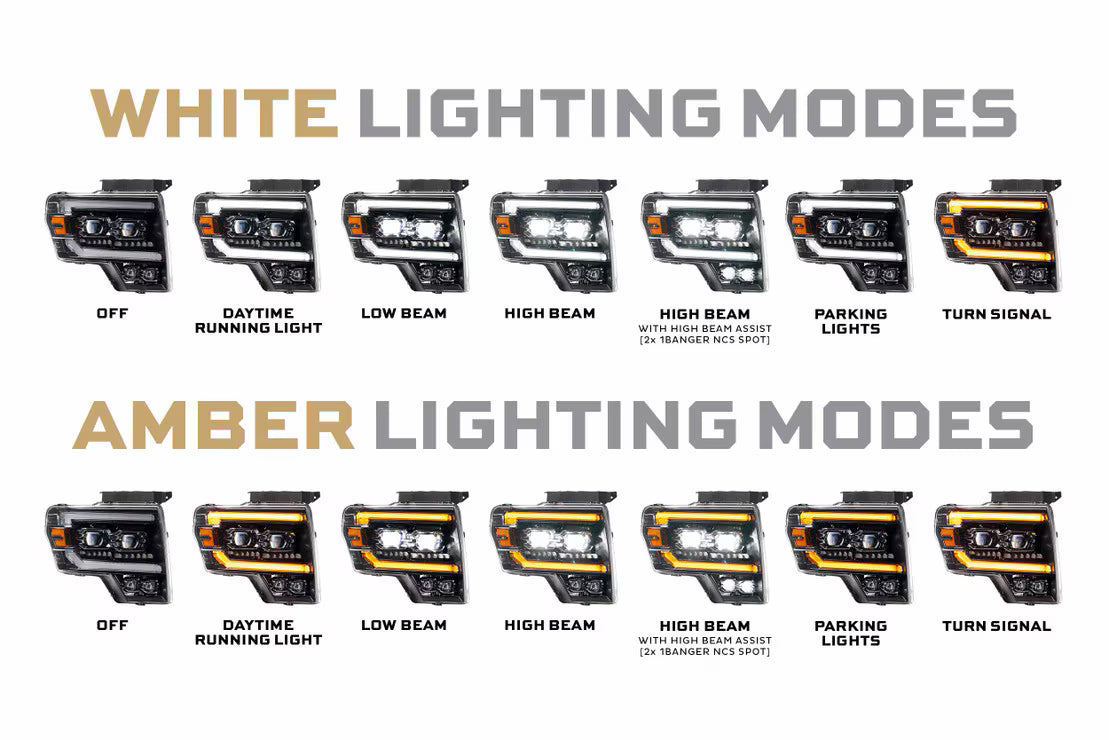

• Signal Swap Keys allow personalization of DRL (white or amber) and turn signal (sequential or standard) operation
• Illuminates in a multi-stage start-up sequence upon ignition
• Includes adapters for both OEM Halogen and OEM HID inputs

Specs

• Traffic Pattern: LHD / Right Hand Traffic Only
• Output (Standard Drivers): DOT / FVMSS108 Compliant
• Output (Supercharged Drivers): +30-50% (Non-Compliant)
• Main Optics: 2x Type 1 Ishida Optic Bi-LED (Nichia NC4W193F)
• Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating
• DRL Colors: White or Amber (Configurable)
• Frost-Free System: Logic Controlled 50W Ceramic with circulation fans
• Internal Finish: Two-Tone Piano Black and Titanium with contrasting textures
• Lens Details: Polycarbonate with UV shield hard coating

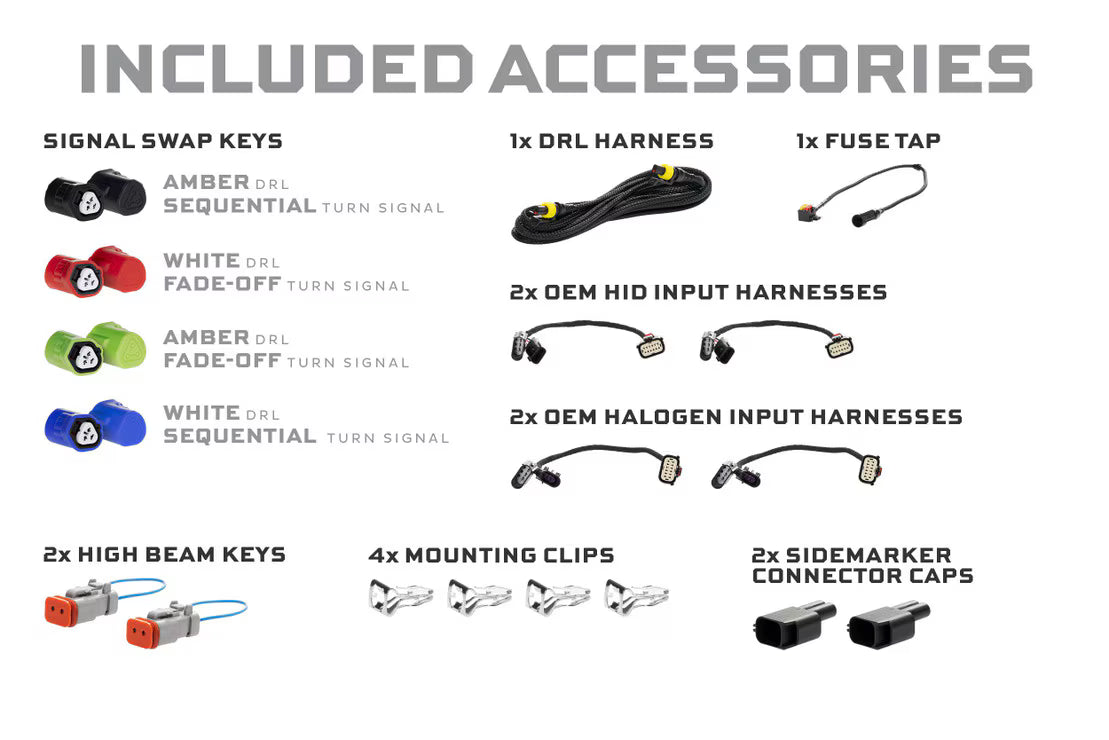

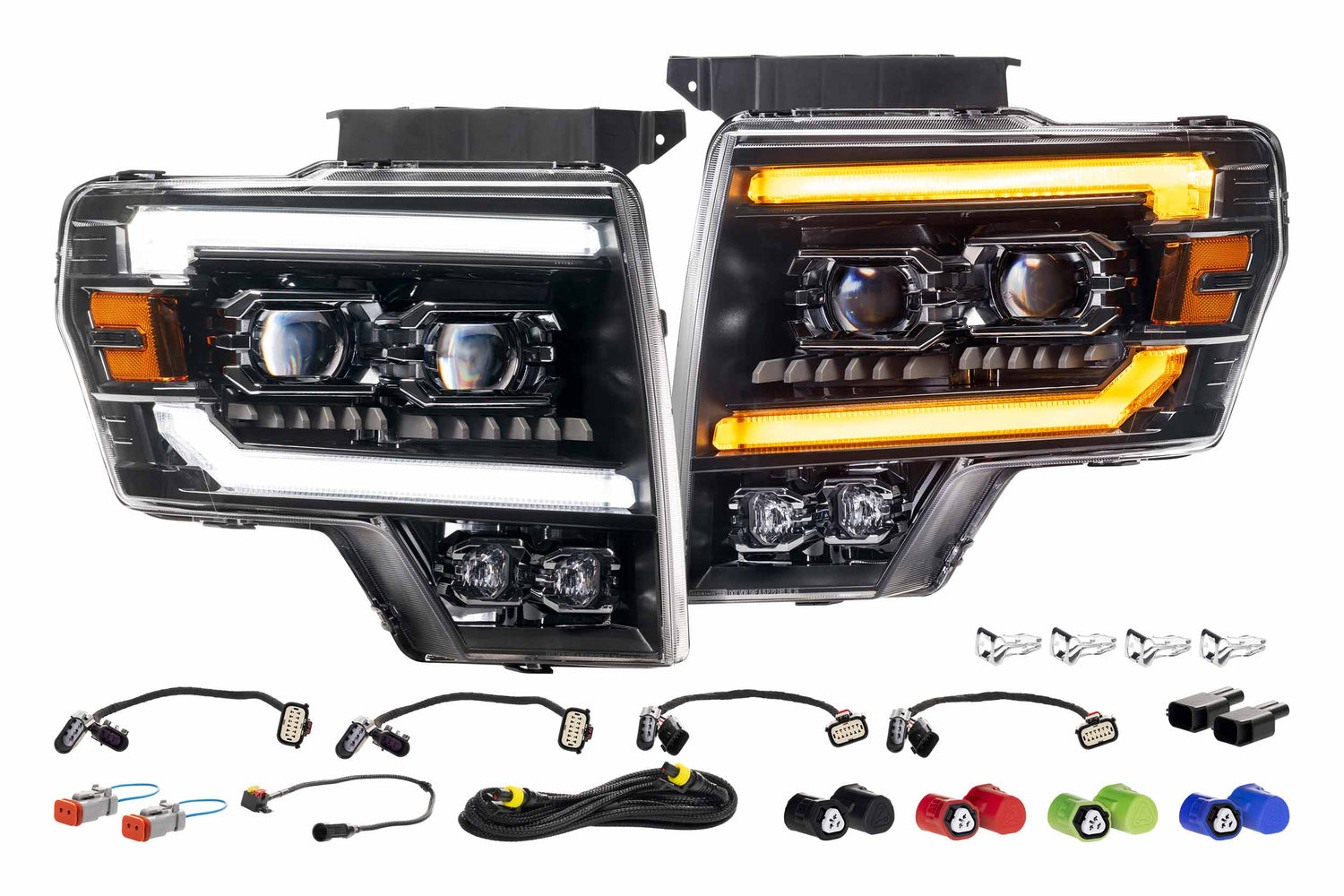

Includes

• Headlights: 1x Passenger Side / RH XB Evo Headlight, 1x Driver Side / LH XB Evo Headlight
• Function Selectors : 8x (Four Pairs) For DRL and Turn Signal Settings
• Accessories : 2x Halogen Adapters, 2x OEM HID Adapters, 1x DRL Harness, 2x High Beam Keys, 4x Mounting Clips, 2x Side Marker Connector Caps, Fuse Tap Hardware
