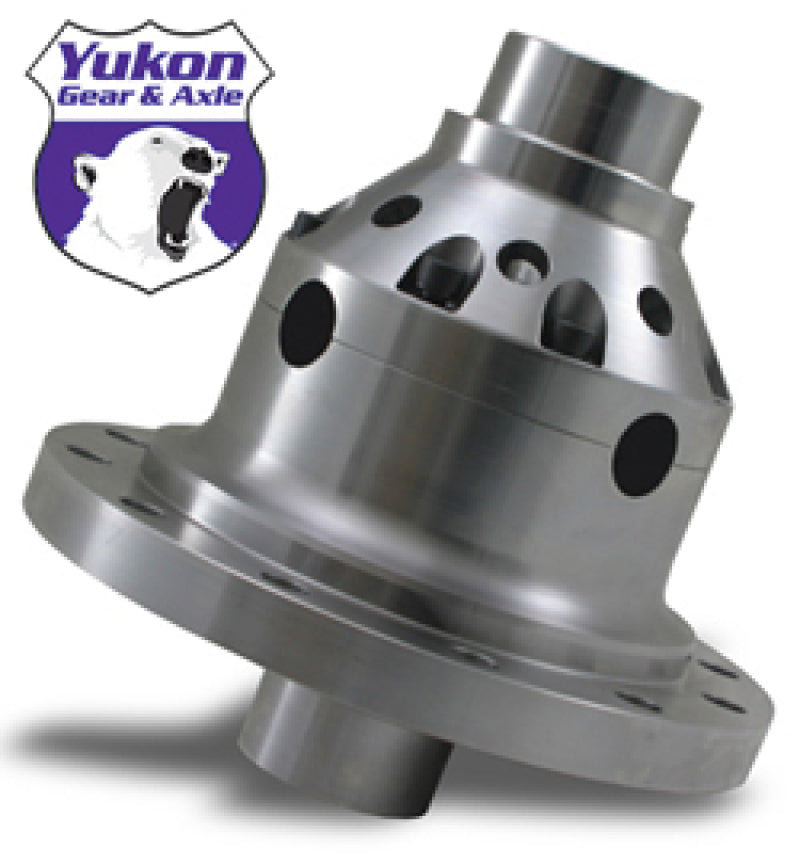

1953-2006 Dana 44 Differential Carrier (YGLD44-4-30)

Everything about the Yukon Grizzly Locker is hardcore, its casing and gears, its advanced gear tooth design, and its impact on traction and performance. The Yukon Grizzly Locker is a mechanical positive-locking differential that’s engineered for rock crawling, serious trail running, off-road racing, and drag racing. The unit provides 100% power to both tires, while still allowing for disengagement while negotiating turns. The Yukon Grizzly Locker is a patented design that features innovations that make it tougher than the competition. Its inner clutch teeth have a larger radius at the base, which offers up to 350% greater strength versus back-cut designs. The Grizzly Locker’s larger teeth also resist breakage caused by shock-loading or catastrophic axle failure. It’s a serious piece of mechanical engineering for serious driving conditions.

Features

• Mechanical Locker
• Dana 44 Grizzly Locker replacement
• D44 30spl, 3.92 & UP GRIZZLY LOCKER
• Fits Dana Spicer 44 with 30 spline axles
• 3.92 and up ratio only

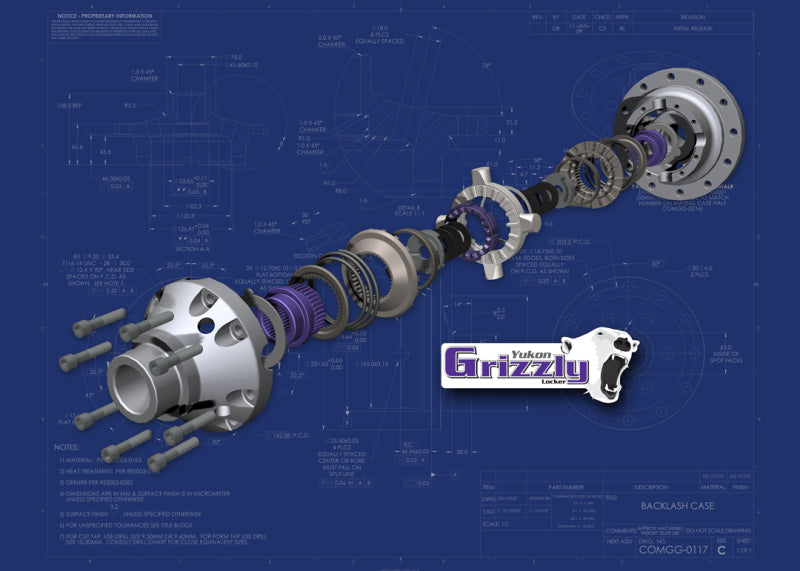

• Patented internal design reduces common locker failures
• 8620 internals for added strength
• Assembled in the USA

Application Notes

• Dana 44 IFS; Yukon Grizzly Locker; 30 Spline; 3.92 And Up; Require IFS Spring Kit YSPSPR-001;-7/16 in. Bolt holes
• Dana 44; Yukon Grizzly Locker; 30 Spline; 3.92 And Up;-7/16 in. Bolt holes
• Dana 44; Yukon Grizzly Locker; 30 Spline; 3.92 And Up;-7/16 in. Bolt holes; Factory TJ Rubicon uses 3.73 & Down Case with Thick Gears

Warranty: 1 YR

Weight: 22.5 lbs
