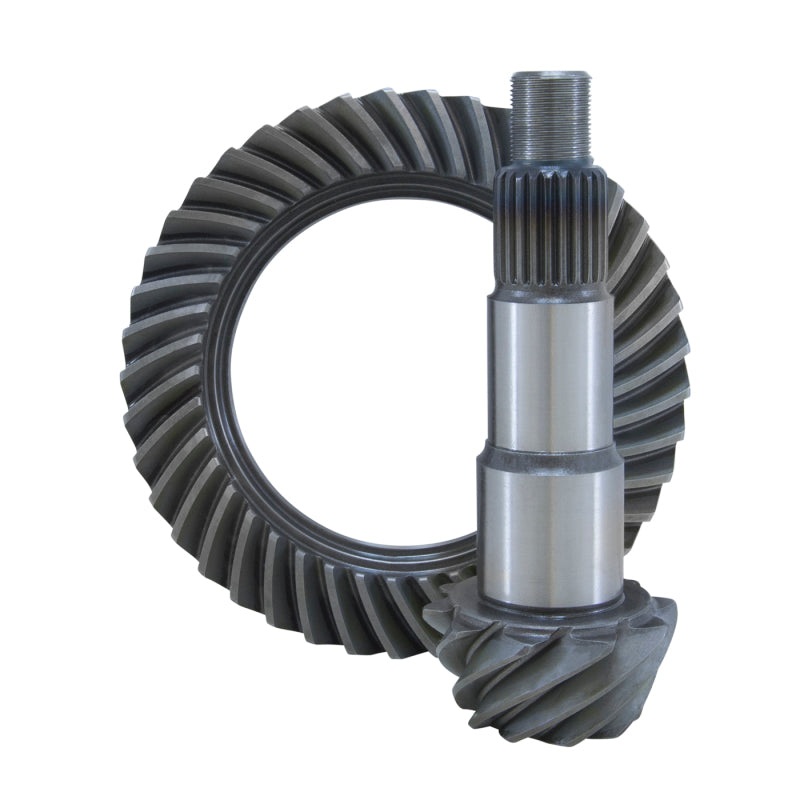

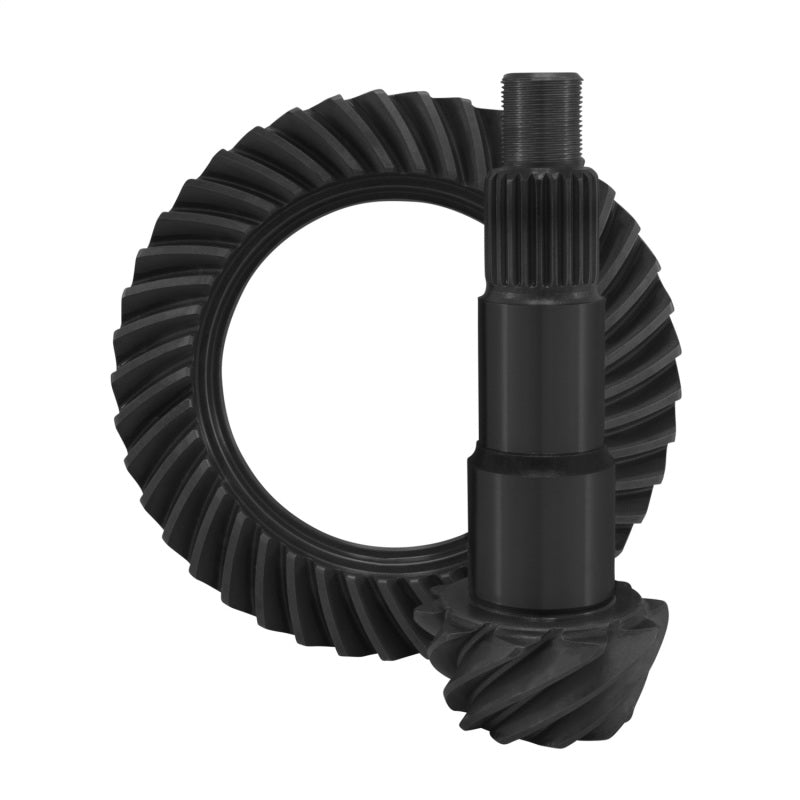

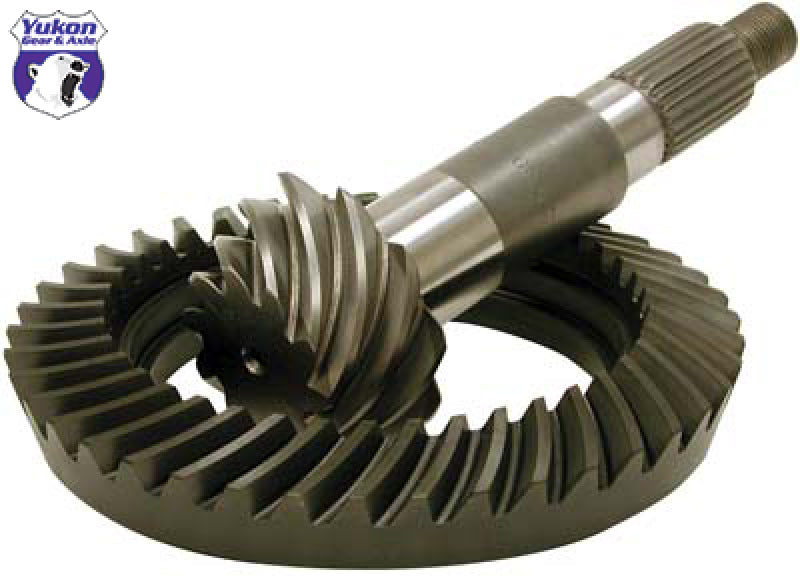

2007-2018 Dana 30 Front Ring and Pinion 24 Spline (YG D30SR-456JK)

High-performance ring and pinion gear sets are the benchmark of quality in the automotive gear industry. Yukon engineers use state-of-the art design, advanced heat-treating techniques, and leading-edge quality testing processes to ensure the structure and surface finish meet exacting specifications and quality standards. Whether you’ve added tons of horsepower under the hood, upgraded to bigger tires, are just want to optimize the traction performance of your ride, Yukon offers the widest selection of gear ratios on the market to accommodate every need.

Features

• JK D30 REV SHORT FRONT 4.56 R&P, 24spl PINION
• Fits reverse rotation Dana Spicer 30 in Jeep JK
• Short pinion
• Yukon ring & pinion set, Dana 30 Jeep JK, reverse short pinion 24 spline, 4.56

Specifications

• 7.33" ring gear diameter
• 24 spline pinion
• 10 ring gear bolts
• 4.56 ratio

Application Notes

• Dana 30, JK Front; Short Reverse; Ring and Pinion Set; 4.56 Gear Ratio

Warranty: 1 YR

Weight: 9.0 lbs
