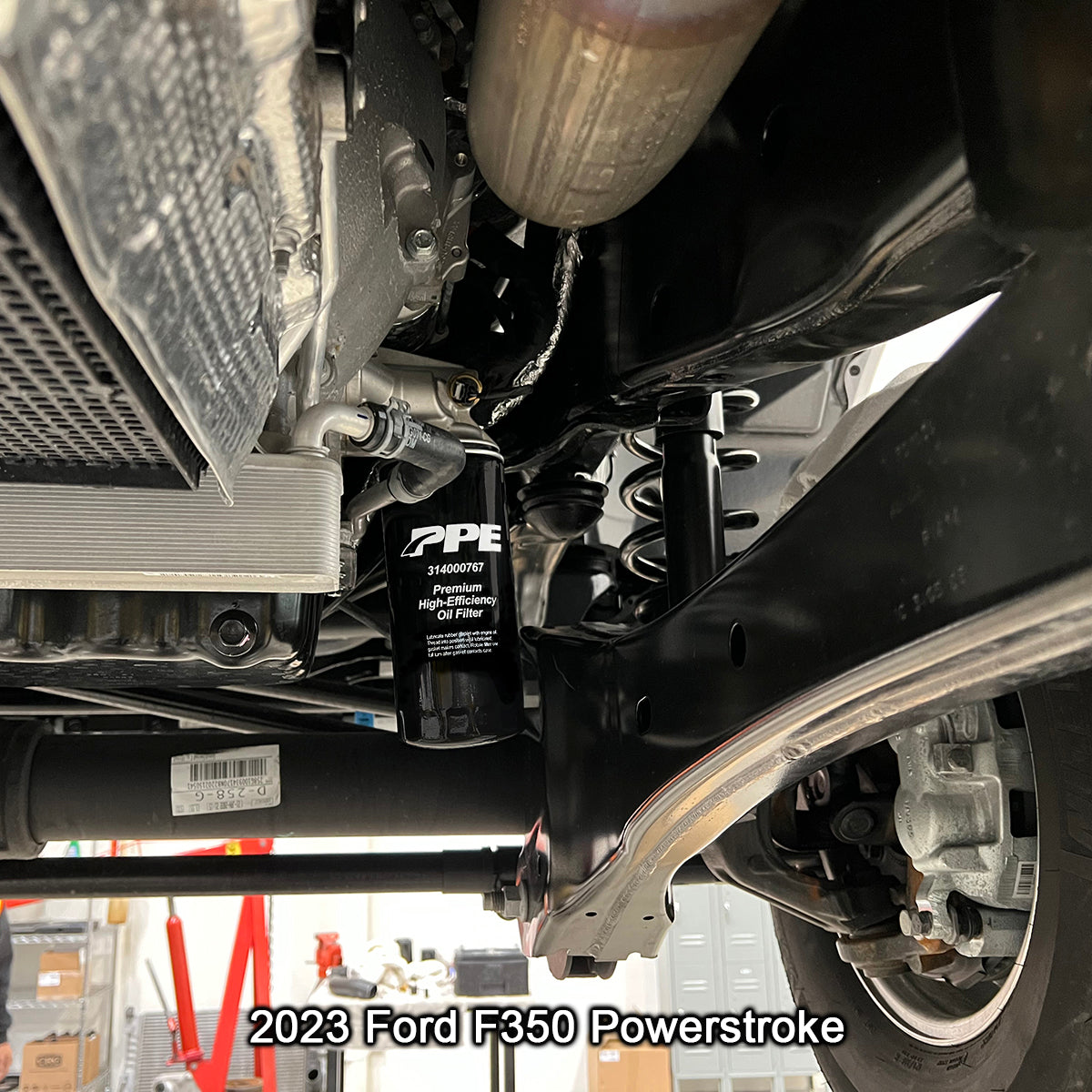

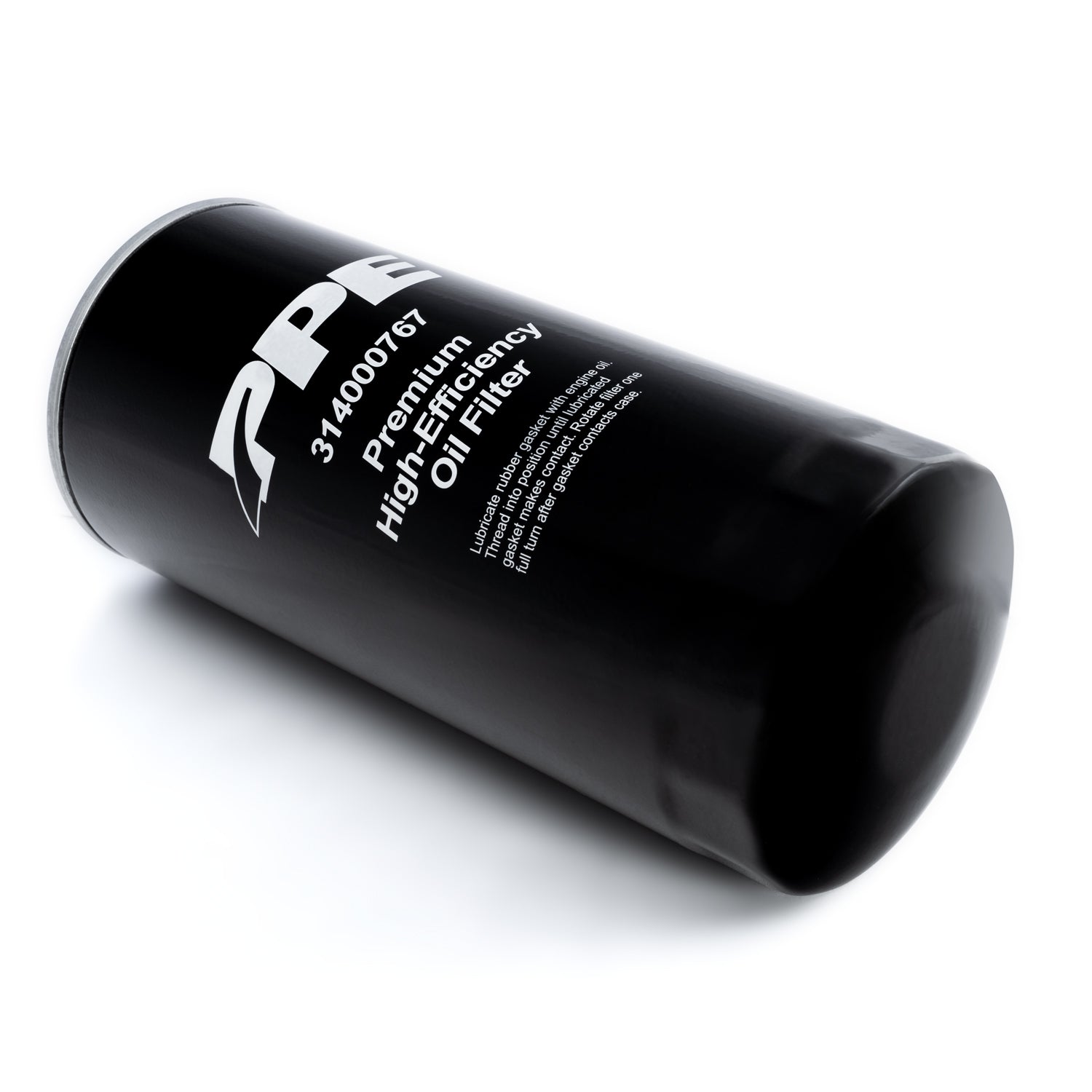

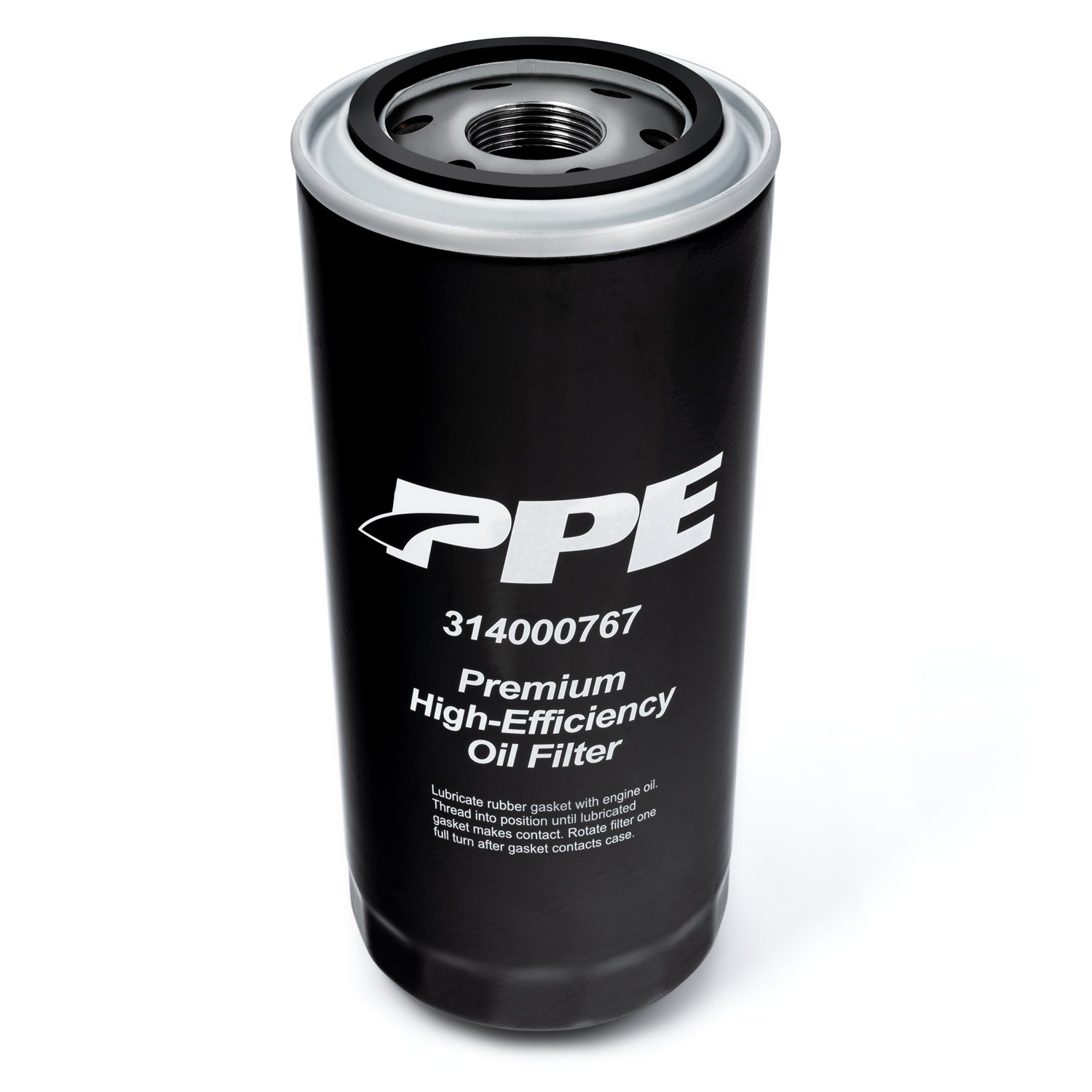

2011-2026 Superduty 6.7L Premium High-Efficiency Engine Oil Filter (314000767)

On backorder, shipping late September 2026.

Description

This oversize PPE Engine Oil Filter has over 20 percent more specially engineered filter media equaling 552 square inches. A perforated metal center core provides sufficient support, preventing collapse.

Blow-by is eliminated by an integrated coil spring. This filter also includes a high-power magnet to catch ferrous particles, preventing them from causing internal damage. The silicone anti-drain-back valve prevents the engine dry starts.

The bypass valve features a stiffer spring and a rubber seal that maximizes protection.

The OEM filter has only 455 square inches of 20-micron filtration capability. The leaf spring in the factory filter loses tension over time and can lead to dirty oil blow-by.

(Replaces Motorcraft FL-2051S)

Features

• MicroPure XR® filtration with a 5-micron nominal rating
• 552 Square inches of ultra-fine synthetic microfiber media, a 21% increase over the stock filter
• Integrated high-temperature rated neodymium magnet captures ferrous particles, providing extra engine protection
• Built-in bypass valve with precision coil spring and steel-NBR poppet
• High-strength steel base plate with increased thread engagement and large oil passages
• Durable metal center tube provides excellent media support and pressure resistance
• TorqSTOP™ Technology prevents over-tightening and reinforces the gasket against high oil pressures
• Silicone anti-drainback valve delivers superior protection during engine start-ups
• Heavy-duty coil spring ensures a secure seal and prevents oil blow-by, maximizing filtration performance
• Pleat-locking spiral bead keeps media pleats evenly spaced for consistent filtration performance
