2015-2026 Sprinter 2500 4x4 Suspension Kit (7071-LM)

For van owners who want maximum handling flexibility, this Van Compass Stage 2.3 system delivers adjustable control for your 4x4 Sprinter 2500. At its core are 4-corner VC-tuned Falcon 3.3 Fast Adjust shocks with 10 firmness settings, letting you dial in everything from highway stability in treacherous wind to maximum compliance off pavement, all at the flip of an easily accessed knob. It is a 100% bolt-on path to a more capable, better-handling van.

Features

• VC-tuned Falcon 3.3 adjustable shocks with 10 intuitive firmness settings
• Large Fast Adjust knob spans the softest to firmest settings over a wide range
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps
• Increased bottom-out resistance
• Progressive foam Bump Buddy jounce bumpers replace hard factory bump stops
• 100% bolt-on installation

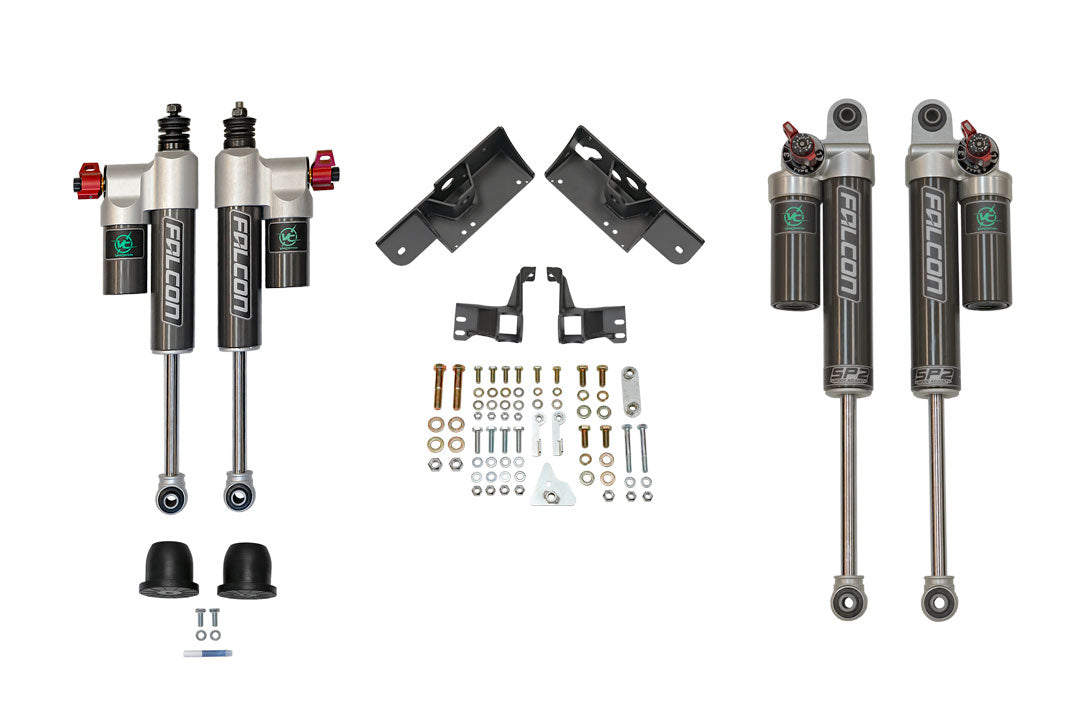

Included Components

• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 3.3 Fast Adjust Rear Shocks with SP2
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Important Notes

• Raises Front 0"
• Raises Rear 0"
• Intended use: lightweight adventure vans below GVWR and passenger vans.
• Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701
• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Installation Instructions

• 2015+ VS30 4x4 Falcon Front Shock Installation Instructions
• Falcon 3.3 SP2 Rear Shock installation instructions
• Sprinter AWD and 4x4 Front Bump Buddies installation instructions
• Falcon 3.3 Shock Settings Guide

Labor Time

Recommended shop labor time: 5 hours.

Specifications

• Grade Type: Performance
