2015-2026 Sprinter 2500 4x4 Suspension Kit (7071-MH)

For owners chasing maximum handling flexibility from a lighter Sprinter, the Van Compass Stage 2.3 system is the answer. Built around VC-tuned, adjustable Falcon 3.3 Fast Adjust shocks, it lets you dial ride quality from soft to firm in seconds, balancing highway stability in treacherous winds against compliance off pavement. This 100% bolt-on kit minimizes side-to-side sway and smooths jarring impacts without changing ride height.

Features

• VC-tuned Falcon 3.3 adjustable shocks with 10 intuitive firmness settings via an easily accessed Fast Adjust knob
• Far larger adjustment range than competitors' smaller adjusters for shocks that adapt to more modes of use
• Enhanced cornering stability and reduced wind sway
• Progressive foam Bump Buddy jounce bumpers replace hard factory rubber for smoother progression and added bottom-out resistance
• 100% bolt on; ideal for lightweight adventure vans below GVWR and passenger vans

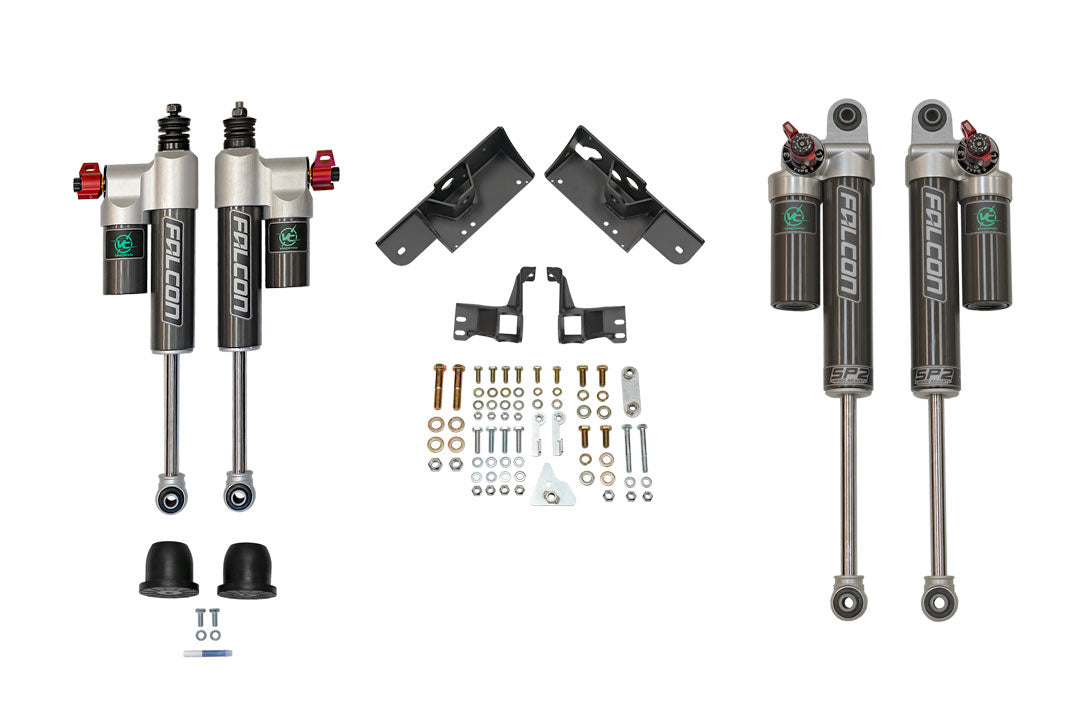

Included Components

• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 3.3 Fast Adjust Rear Shocks with SP2
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Important Notes

• Raises Front 0"
• Raises Rear 0"
• Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701
• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Installation Instructions

• 2015+ VS30 4x4 Falcon Front Shock Installation Instructions
• Falcon 3.3 SP2 Rear Shock installation instructions
• Sprinter AWD and 4x4 Front Bump Buddies installation instructions
• Falcon 3.3 Shock Settings Guide

Labor Time

Recommended shop labor time: 5 hours.

Specifications

• Grade Type: Performance
• Maximum Lift Rear: 1.5 IN
