2015-2026 Sprinter 3500/3500XD 4x4 Suspension Leveling Kit (7053-3500-H)

The Stage 3 system is built for heavy vans that are sagging in the rear from the weight of a build-out or conversion. It combines a VC-tuned four-corner Falcon 2.1 shock upgrade, an innovative Opti-Rate rear leaf spring pack, and a front bump stop upgrade to restore ride height and tighten up your Sprinter's loose handling. The Opti-Rate pack typically adds about 1.25" of rear lift for a nicely leveled stance.

Features

• VC-tuned Falcon 2.1 monotube shocks, front and rear
• Innovative Opti-Rate rear leaf spring pack restores ride height and corrects sag
• Typically delivers about 1.25" of rear lift for a level stance
• Front bump stop upgrade for better spring-curve progression and bottom-out resistance
• Reduces cornering lean, wind sway, and jarring impacts for less driver fatigue
• Ideal for vans at or near GVWR full time and heavy Class B/C RVs

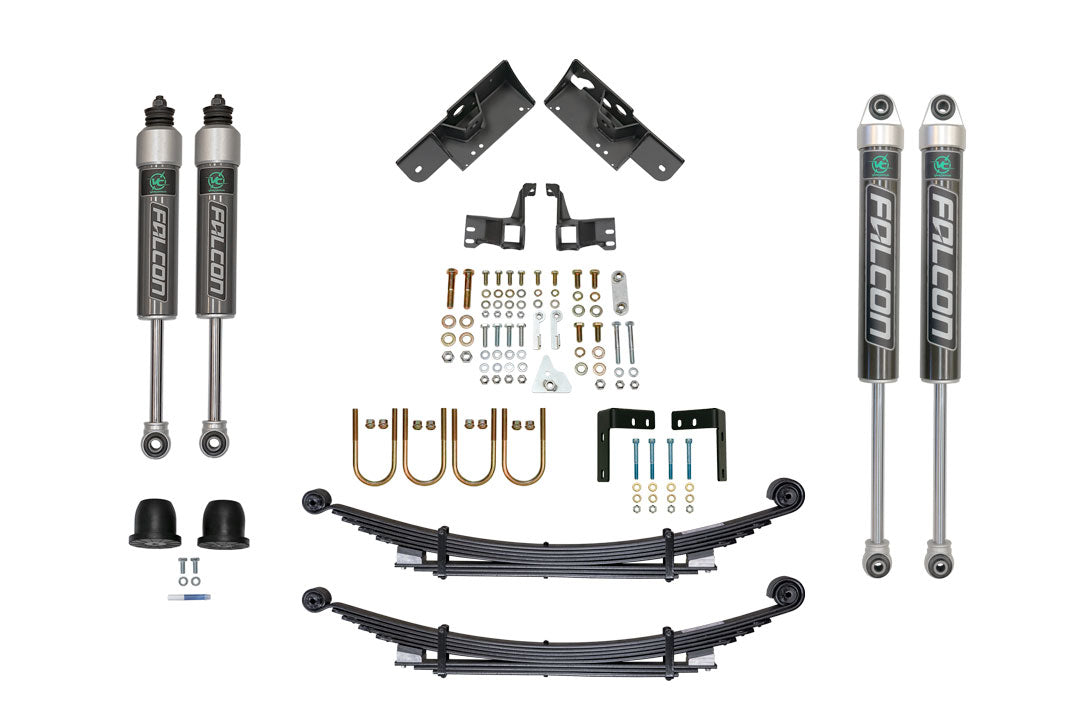

Included Components

• Falcon 2.1 Monotube Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 2.1 Monotube Rear Shocks
• Opti-Rate Full Replacement Rear Leaf Spring System
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Important Notes

• Raises Front 0"
• Raises Rear 1.5"
• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Installation Instructions

• 2015+ VS30 4x4 Falcon Front Shock Installation Instructions
• NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions
• Sprinter AWD and 4x4 Front Bump Buddies installation instructions
• Sprinter 3500 4WD Rear Spring Installation Instructions

Labor Time

Recommended shop labor time: 7 hours.

Specifications

• Grade Type: Performance
