2015-2026 Sprinter 3500/3500XD 4x4 Suspension Leveling Kit (7053-3500-M)

Built for the heaviest Sprinter 3500 builds, the Van Compass Stage 3 system tightens up loose handling on vans running at or near GVWR full time. A four-corner Falcon 2.1 monotube shock upgrade, an Opti-Rate rear leaf spring pack and progressive foam bump stops combine to control sway, soak up impacts and restore the ride height lost to a heavy conversion. Vehicle control and suspension compliance were the two priorities behind the design, and the payoff is confident performance over any terrain.

Features

• VC-tuned Falcon 2.1 monotube shocks, front and rear, for dramatically improved handling
• Innovative Opti-Rate rear leaf spring pack restores ride height and corrects sag, typically yielding 1.25" of rear lift for a leveled stance
• Larger, more effective damper piston reduces body lean, violent sway and jarring impacts
• Progressive foam Bump Buddy jounce bumpers replace hard factory rubber for smoother spring progression and added bottom-out resistance
• Ideal for adventure vans at GVWR, heavy Class B and C RVs, and heavy passenger vans seeking a handling upgrade

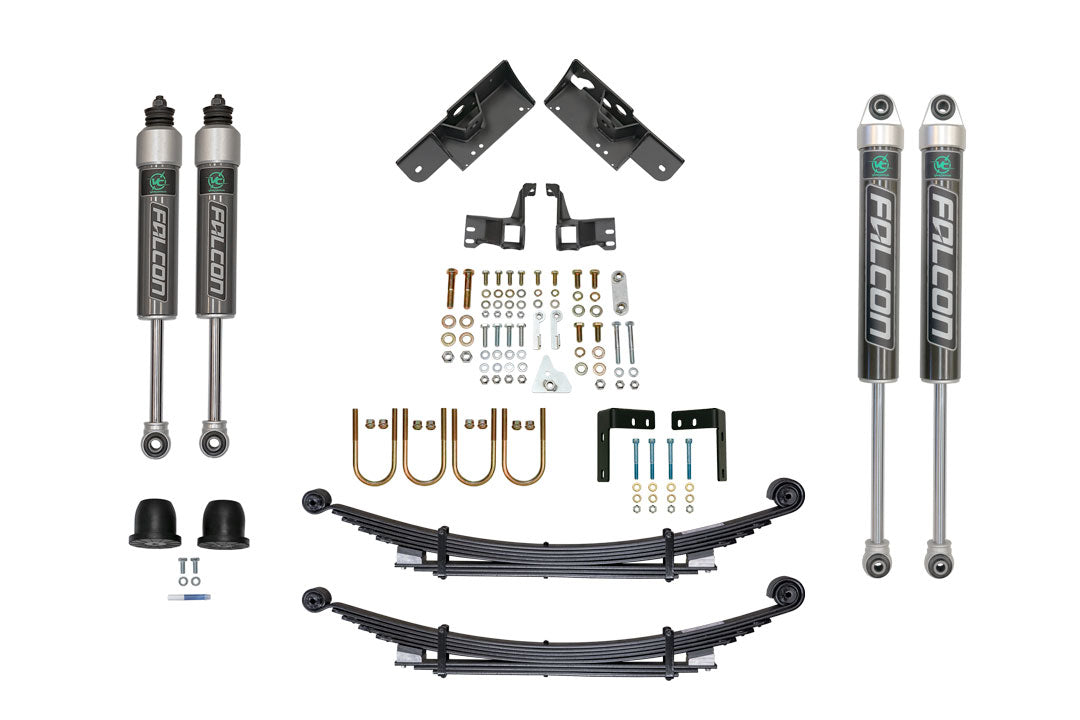

Included Components

• Falcon 2.1 Monotube Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 2.1 Monotube Rear Shocks
• Opti-Rate Full Replacement Rear Leaf Spring System
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Important Notes

• Raises Front 0"
• Raises Rear 1.5"
• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Installation Instructions

• 2015+ VS30 4x4 Falcon Front Shock Installation Instructions
• NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions
• Sprinter AWD and 4x4 Front Bump Buddies installation instructions
• Sprinter 3500 4WD Rear Spring Installation Instructions

Labor Time

Recommended shop labor time: 7 hours.

Specifications

• Grade Type: Performance
