2015-2026 Transit Stage 4 Topo 2.0 System, Light/Mid Weight Tune (7214-LM)

Transform the ride and stance of your Ford Transit AWD with the Van Compass Stage 4 Topo 2.0 package, a tuned system developed specifically around the packaging and front CV shaft constraints of the 2020+ AWD platform. A precision-engineered front lift, a rear mini leaf pack and adjustable Falcon 3.3 shocks combine for an aggressive 2" taller stance, room for larger tires and a dramatic improvement in ride quality.

Features

• Aggressive 2" taller stance for larger tires and improved approach, breakover and departure angles
• 0.75" lift camber correction plate with a tuned coil spring gains 1.25" of front lift plus added compression travel
• 5-leaf mini pack adds a 10-15% rear spring rate increase and 2.0"-2.5" of rear lift depending on vehicle weight
• VC-tuned Falcon 3.3 adjustable rear shocks with 10 intuitive firmness settings via an easily accessed Fast Adjust knob
• Friction-reducing leaf tips and rear shock relocation brackets allow trimming the low factory brackets for better ground clearance
• Developed for the 2020+ AWD Transit, including heavier vans experiencing rear sag

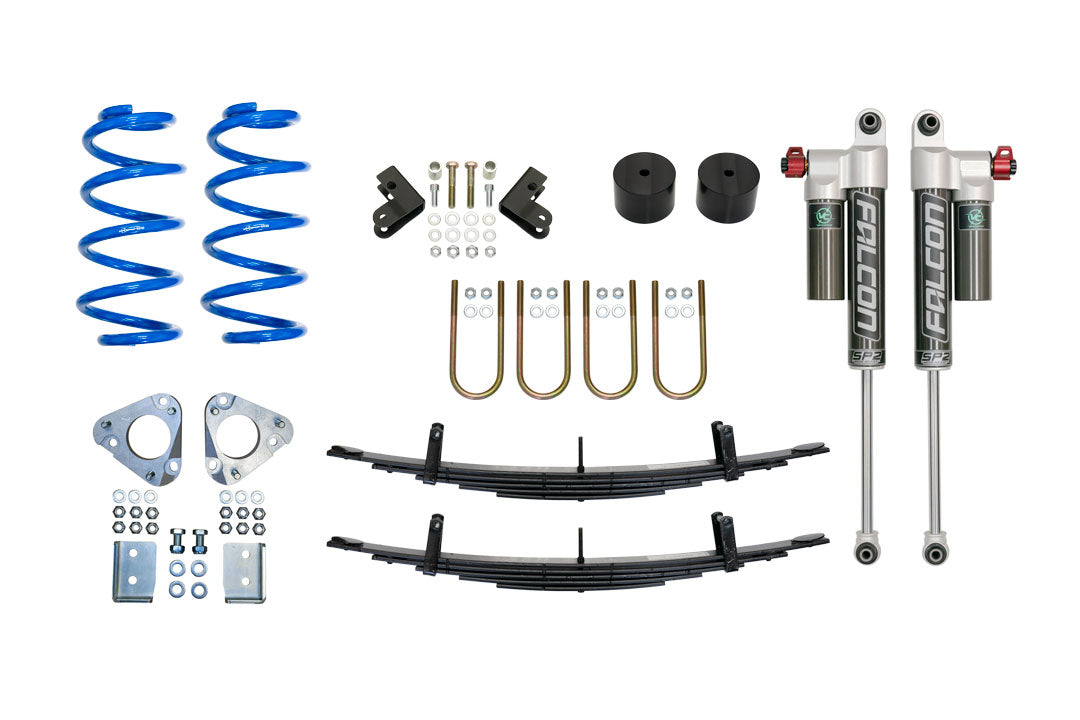

Included Components

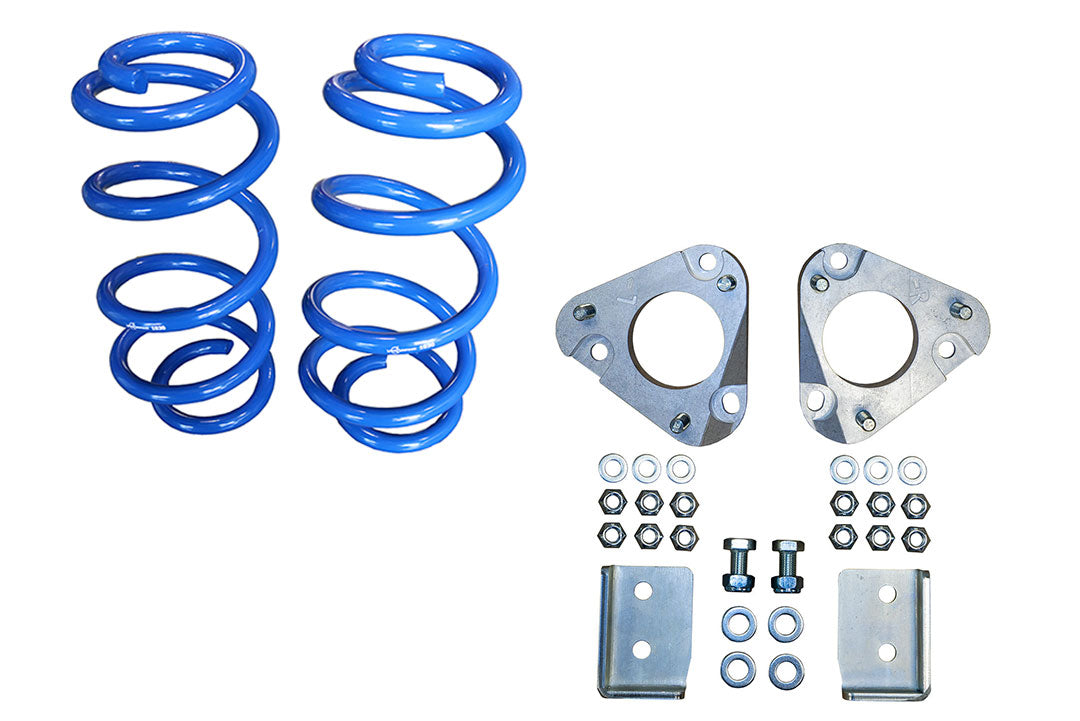

• Topo 2.0 Front Lift Kit

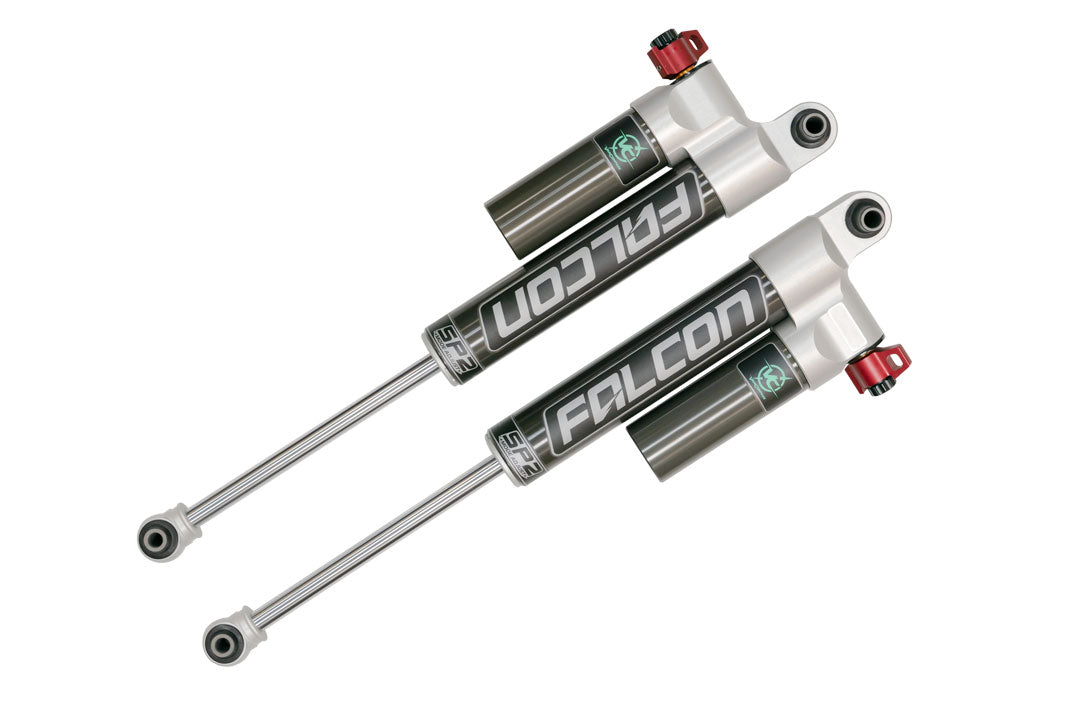

• Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)

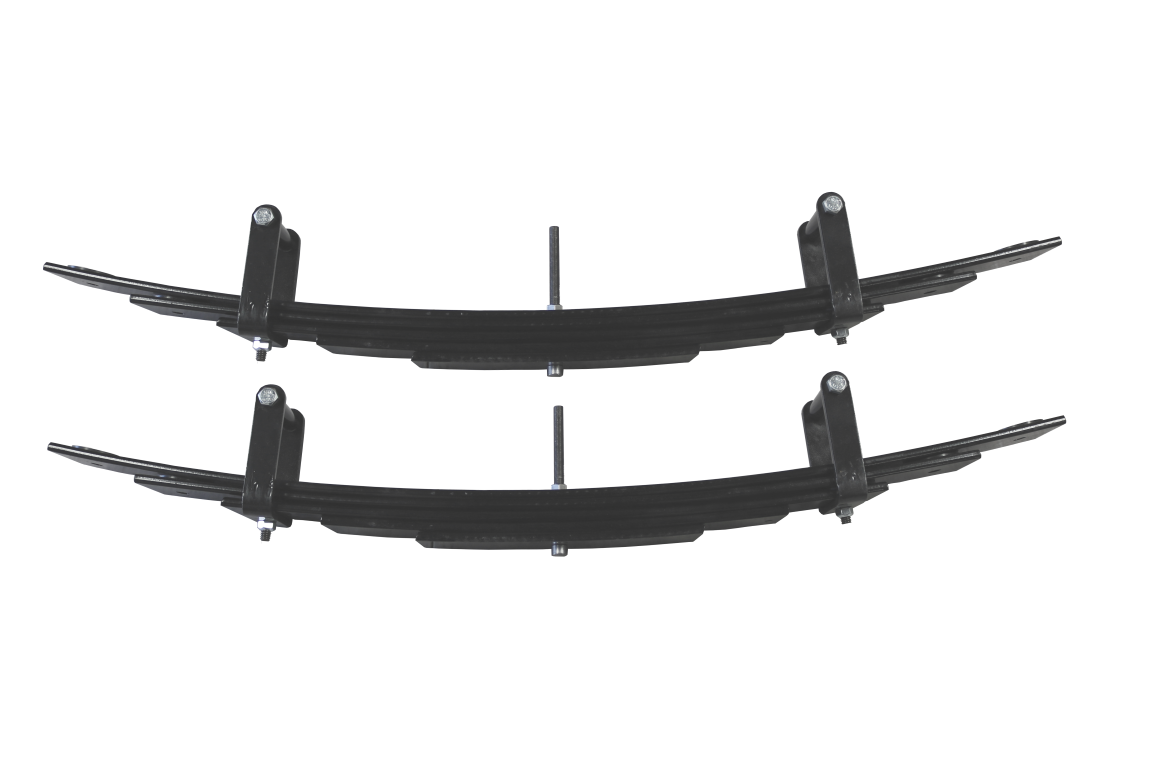

• Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
• High Clearance Rear Shock Brackets

Important Notes

• with Single Rear Wheels (SRW)
• Up to 265/75R16 Tire
• 90 mm Offset Wheels Recommended
• 2015-17 VANS REQUIRE MOTORCRAFT AD1145 UPPER STRUT MOUNT AND DRILLING HOLES TO 10MM
• Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
• Bilstein B6 strut not recommended for AWD models.

Installation Instructions

• 2015+ Transit Topo Front Kit Installation Instructions
• 2013+ Transit Rear Falcon 3.3 Installation Instructions
• 2013+ Transit High Clearance Shock Brackets Installation Instructions
• 2013+ Transit Topo Rear Leaf Pack Installation Instructions
• Falcon 3.3 Shock Settings Guide

Labor Time

Recommended shop labor time: 9 hours.

Specifications

• Grade Type: Performance
• Maximum Lift: 2.0 IN
• Maximum Lift Front: 2 IN
• Maximum Lift Rear: 2 IN
