2015-2026 Transit Stage 4 Topo 2.0 System, Mid/Heavy Weight Tune (7214-MH)

Go taller, ride better, and carry more with the Van Compass Stage 4 Topo 2.0 System for your 2015-2026 Transit. A true 2" of lift clears bigger tires and sharpens approach, breakover, and departure angles, while VC-tuned Falcon 3.3 Fast Adjust rear shocks and an added leaf mini-pack tame sag and dial in ride quality on the fly. It is the most capable Topo package for heavier and passenger vans that want a versatile, aggressive setup.

Features

• True 2" lift for larger tires and improved off-road geometry
• 0.75" lift camber-correction plate with a tuned coil spring (1.25" front gain plus added compression travel)
• 5-leaf mini-pack adds 10-15% rear spring rate and 2.0"-2.5" of rear lift to fight sag
• VC-tuned Falcon 3.3 Fast Adjust rear shocks with 10 on-the-fly firmness settings
• Included rear shock relocation brackets improve ground clearance under the axle
• Built for heavier vans, passenger vans, and anyone who wants adjustable ride quality

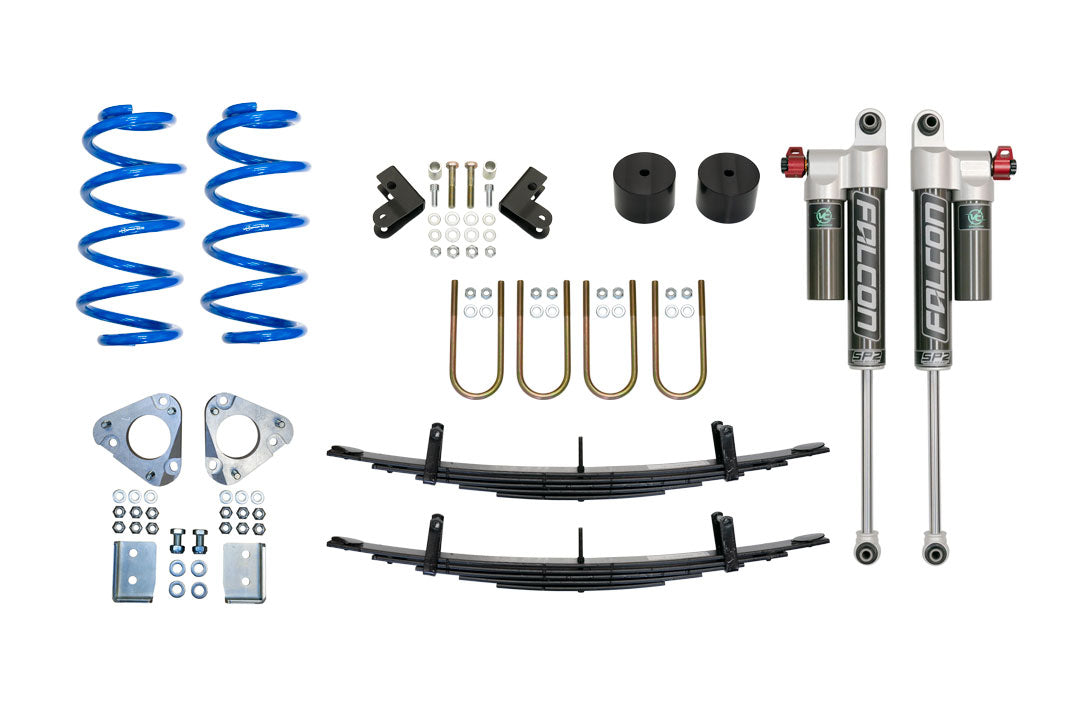

Included Components

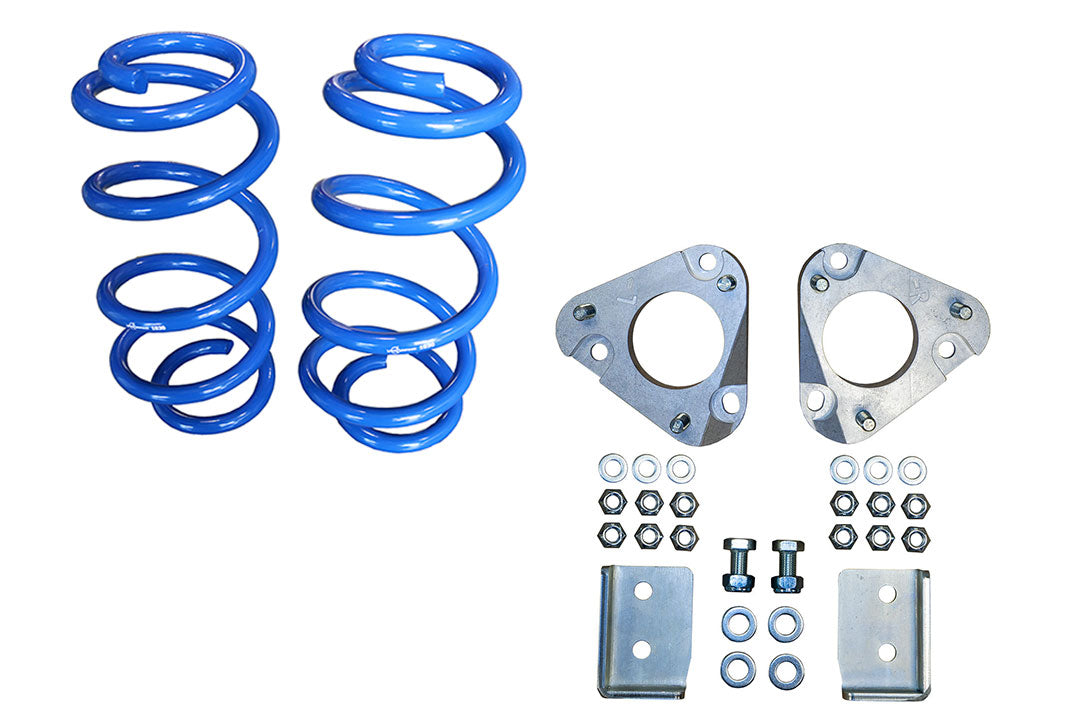

• Topo 2.0 Front Lift Kit

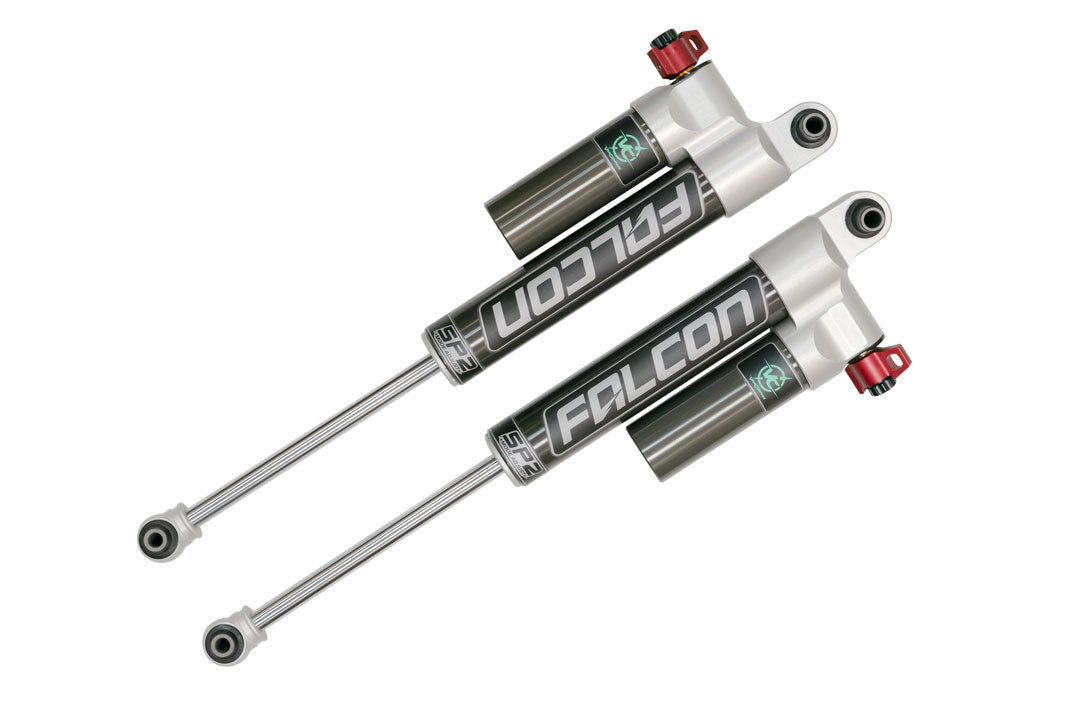

• Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)

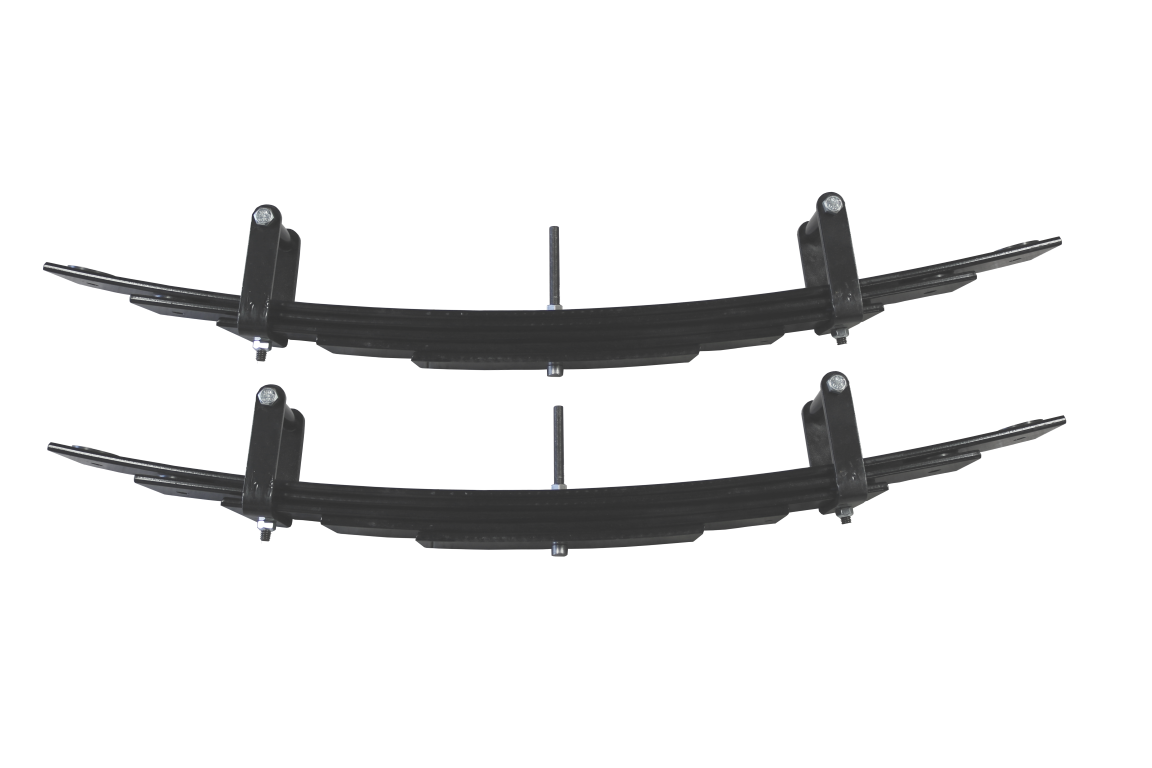

• Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
• High Clearance Rear Shock Brackets

Important Notes

• with Single Rear Wheels (SRW)
• Up to 265/75R16 Tire
• 90 mm Offset Wheels Recommended
• 2015-17 VANS REQUIRE MOTORCRAFT AD1145 UPPER STRUT MOUNT AND DRILLING HOLES TO 10MM
• Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
• Bilstein B6 strut not recommended for AWD models.

Installation Instructions

• 2015+ Transit Topo Front Kit Installation Instructions
• 2013+ Transit Rear Falcon 3.3 Installation Instructions
• 2013+ Transit High Clearance Shock Brackets Installation Instructions
• 2013+ Transit Topo Rear Leaf Pack Installation Instructions
• Falcon 3.3 Shock Settings Guide

Labor Time

Recommended shop labor time: 9 hours.

Specifications

• Maximum Lift: 2.0 IN
• Maximum Lift Front: 2 IN
• Maximum Lift Rear: 2 IN
