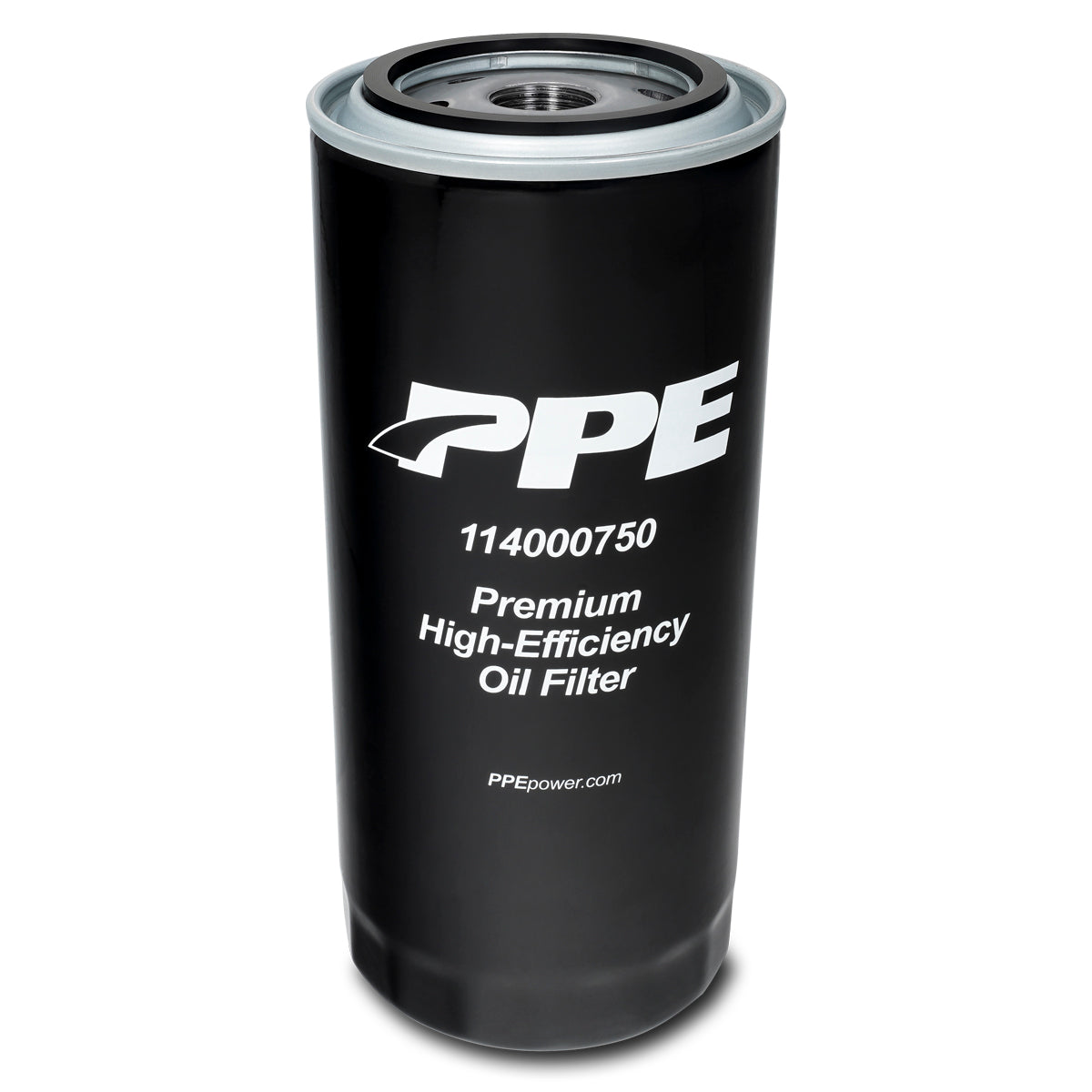

2020-2026 GM HD Premium High-Efficiency Engine Oil Filter (114000750)

Description

2020+ GM 6.6L Duramax High-Efficiency Engine Oil Filter (replaces AC Delco PF26).This oversize filter requires the use of the 114002700 PPE Fuel Pump Relocation Bracket (2020-2024 L5P)

This oversized PPE Engine Oil Filter has 2 times the specially engineered filter media equaling 522 square inches, which is over 100 percent larger media than OEM. A perforated metal center core and spiral-wrapped adhesive provides media support, preventing collapse.

This filter also includes a high-power magnet to catch ferrous metal debris, preventing it from circulating or clogging the filter paper. The silicone anti-drain-back valve prevents engine dry starts. The bypass valve features a stiffer spring and a rubber seal.

The base plate is also made thicker to accommodate increased oil pressures in high-performance applications.

The OEM PF26 filter comes up short with only 259 square inches of 30-micron filtration capability. The stock leaf spring loses tension and can lead to dirty oil blow-by. The OEM filter bypass valve comes with no seal of any kind.

Features

• MicroPure XR® filtration with a 5-micron nominal rating
• 522 Square inches of ultra-fine synthetic microfiber media, a 100% increase over the stock filter
• Integrated high-temperature rated neodymium magnet captures ferrous particles, providing extra engine protection
• Built-in bypass valve with precision coil spring and steel-NBR poppet

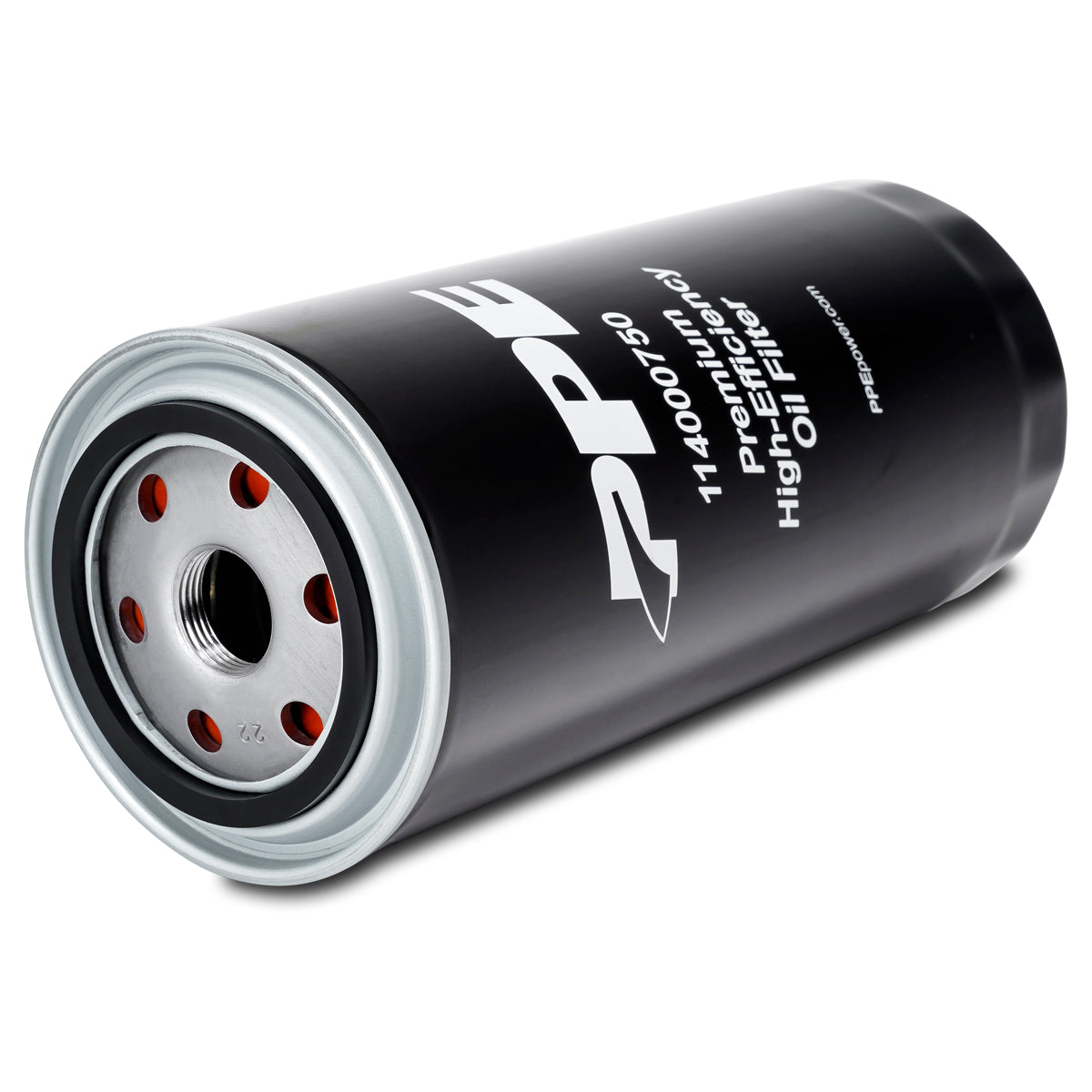

• High-strength steel base plate with increased thread engagement and large oil passages
• Durable metal center tube provides excellent media support and pressure resistance
• TorqSTOP™ Technology prevents over-tightening and reinforces the gasket against high oil pressures
• Silicone anti-drainback valve delivers superior protection during engine start-ups
• Heavy-duty coil spring ensures a secure seal and prevents oil blow-by, maximizing filtration performance
• Pleat-locking spiral bead keeps media pleats evenly spaced for consistent filtration performance

Notes

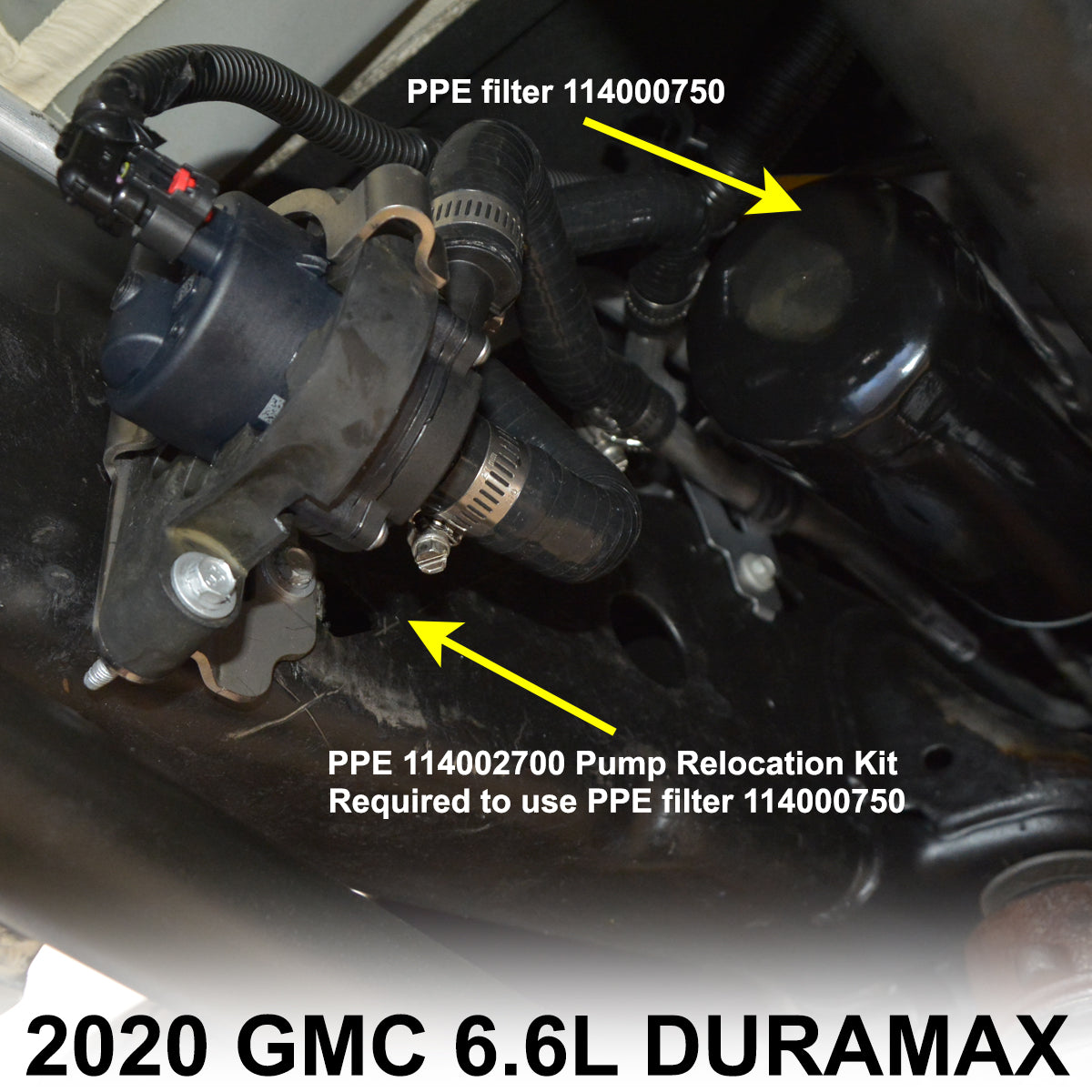

Note: 114002700 Fuel Coolant Pump Relocation Bracket Kit is required for the install of this deep filter.
